DESCRIPTION
Specifications and Features:

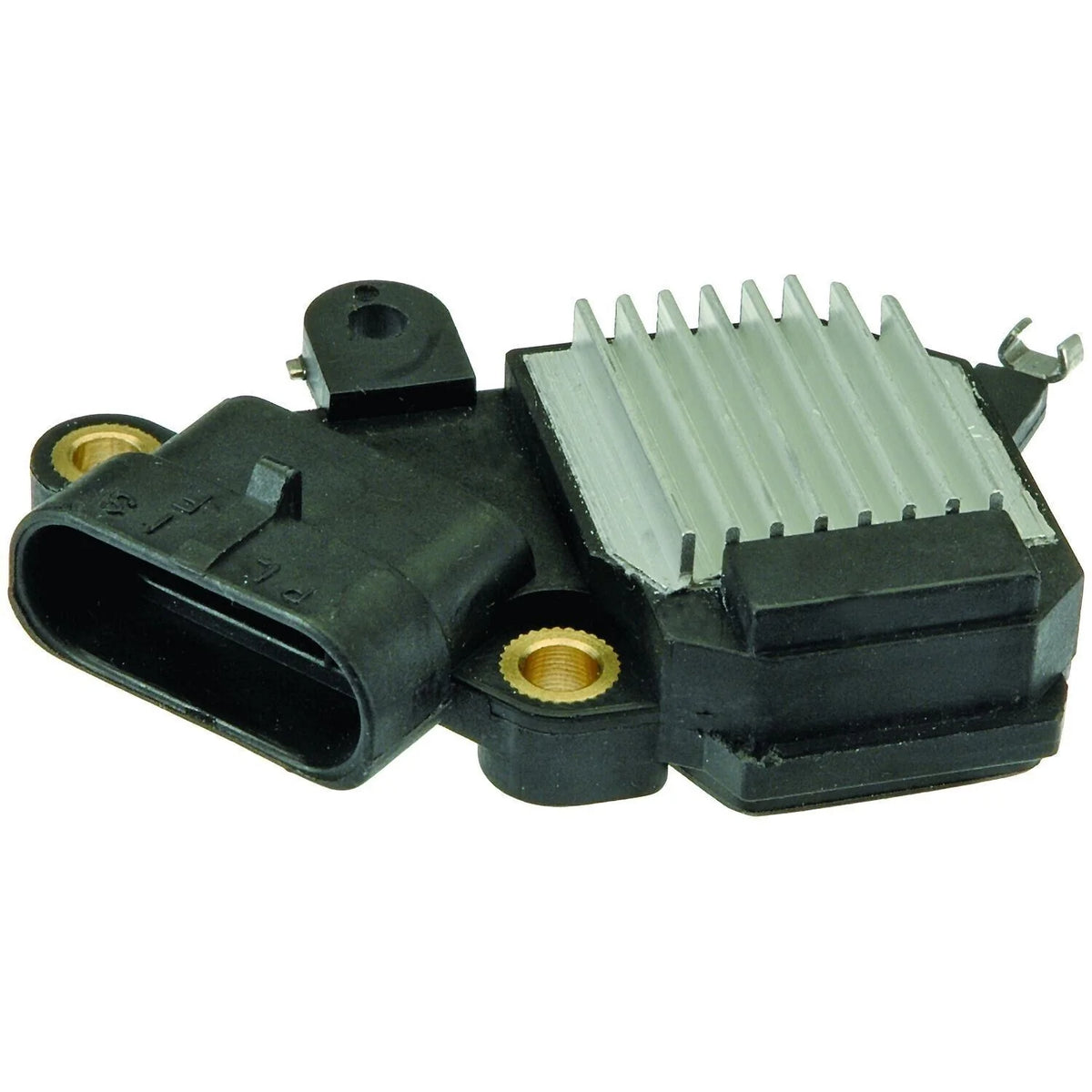

- TYPE Regulator
- CIRCUIT B-CIRCUIT
- LENGTH MOUNTING 40.4
- LRC 2.62 SECOND
- PLUG CODE 314
- SYSTEM VOLTAGE 12

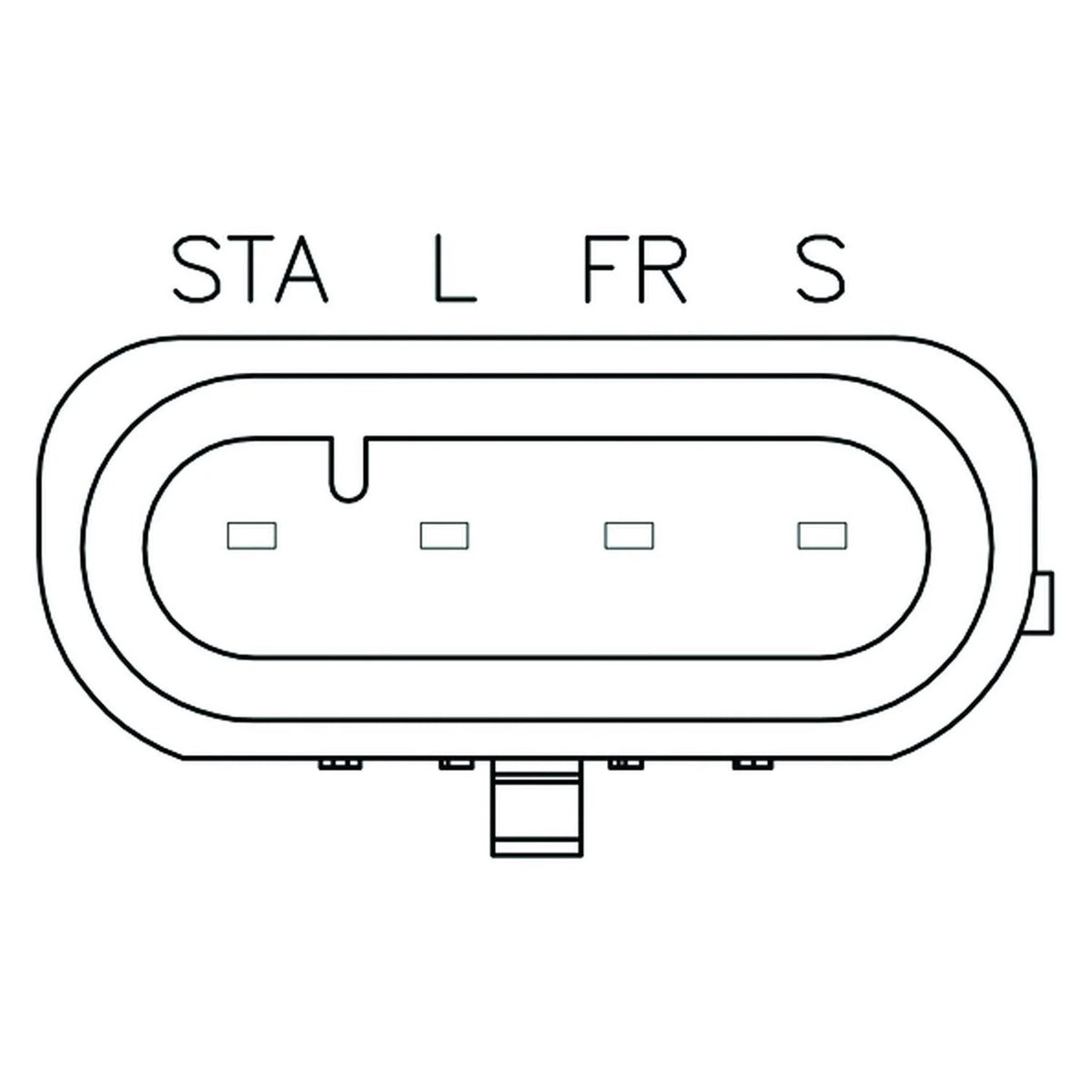

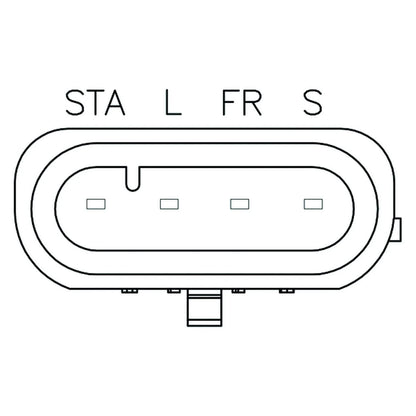

- TERMINALS P, L, F, S
- VOLT SET 14.8
- MFR:DELCO
- FEATURE 1:100% New Transpo Heavy Duty ASVR Design
- FEATURE 2:OE compliant functions & performance: current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection
- FEATURE 3:Welded construction - no solder joints for hi-temperature reliability & increased field life
- NOTE 1:B+ connection made at rectifier lead-frame (not under B+ stud spacer)
- SPECS FOR:Delco AD230, AD237, AD244 Series IR/IF Alternators
- SPECS:12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Vset, 2.5 sec. LRC
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
Fit many makes and models of Buick Cadillac Chevrolet GMC Isuzu Oldsmobile Saab and more.
Buick
- Rainier V8 5.3L 2006
Cadillac - Escalade V8 5.3L 2002
- Escalade V8 6.0L 2002
Chevrolet
- Astro V6 4.3L 2001-2004
- Avalanche 1500 V8 5.3L 2002-2004
- Avalanche 2500 V8 8.1L 2002
- Express 1500 V6 4.3L 2001-2004
- Express 1500 V8 5.0L 2001-2002
- Express 1500 V8 5.3L 2003-2004
- Express 1500 V8 5.7L 2001-2002
- Express 2500 V6 4.3L 2001-2002
- Express 2500 V8 5.0L 2001-2002
- Express 2500 V8 5.7L 2001-2002
- Express 2500 V8 6.5L 2001-2002
- Express 2500 V8 6.6L 2010
- Express 3500 V8 5.7L 2001-2002
- Express 3500 V8 6.5L 2001-2002
- Express 3500 V8 8.1L 2001-2002
- C3500HD V8 8.1L 2001-2002
- Silverado 1500 V6 4.3L 1999-2004
- Silverado 1500 V8 4.8L 1999-2004
- Silverado 1500 V8 5.3L 1999-2005
- Silverado 1500 V8 6.0L 2003-2005
- Silverado 1500 HD V8 6.0L 2001-2003
- Silverado 1500 HD V8 6.0L 2005
- Silverado 2500 V8 5.3L 1999-2001
- Silverado 2500 V8 6.0L 1999-2004
- Silverado 2500 HD V8 6.0L 2001-2005
- Silverado 2500 HD V8 6.6L 2001-2005
- Silverado 2500 HD V8 8.1L 2001-2005
- Silverado 3500 V8 6.0L 2001-2005
- Silverado 3500 V8 6.6L 2001-2005
- Silverado 3500 V8 8.1L 2001-2005
- SSR V8 5.3L 2003-2004
- Suburban 1500 V8 5.3L 2000-2004
- Suburban 2500 V8 6.0L 2000-2002
- Suburban 2500 V8 8.1L 2001-2002
- Tahoe V8 4.8L 2000-2002
- Tahoe V8 5.3L 2000-2002
- Trailblazer V8 5.3L 2006
GMC
- C3500HD V8 8.1L 2001-2002
- Envoy V8 5.3L 2005-2006
- Sierra 1500 V6 4.3L 1999-2004
- Sierra 1500 V8 4.8L 1999-2004
- Sierra 1500 V8 5.3L 1999-2004
- Sierra 1500 V8 6.0L 2002-2004
- Sierra 1500 HD V8 6.0L 2001-2003
- Sierra 1500 HD V8 6.0L 2005
- Sierra 2500 V8 5.3L 1999-2000
- Sierra 2500 V8 6.0L 1999-2004
- Sierra 2500 HD V8 6.0L 2001-2005
- Sierra 2500 HD V8 6.6L 2001-2005
- Sierra 2500 HD V8 8.1L 2001-2005
- Sierra 3500 V8 6.0L 2001-2005
- Sierra 3500 V8 6.6L 2001-2005
- Sierra 3500 V8 8.1L 2001-2005
- Safari V6 4.3L 2001-2004
- Savana 1500 V6 4.3L 2001-2002
- Savana 1500 V8 5.0L 2001-2002
- Savana 1500 V8 5.7L 2001-2002
- Savana 2500 V6 4.3L 2001-2002
- Savana 2500 V8 5.0L 2001-2002
- Savana 2500 V8 5.7L 2001-2002
- Savana 2500 V8 6.5L 2001-2002
- Savana 3500 V8 5.7L 2001-2002
- Savana 3500 V8 6.5L 2001-2002
- Savana 3500 V8 8.1L 2001-2002
- Yukon V8 4.8L 2000-2002
- Yukon V8 5.3L 2000-2002
- Yukon XL 1500 V8 5.3L 2000-2002
- Yukon XL 2500 V8 6.0L 2000-2002
- Yukon XL 2500 V8 8.1L 2001-2002
Isuzu - Ascender V8 5.3L 2003-2006
Oldsmobile
- Intrigue V6 3.5L 1999-2002
Saab
- 9-7x V8 5.3L 2005-2006
Interchange #
101234, D200HD, 35-162, D200
Lester
8237, 8237, 8241, 8241, 8241, 8247, 8273, 8290, 8292-253
Replaces
Delco 10458200, 10483643, 10486311, 10494747, 19051915, 19053013, 19053730, Original Reference Number 3643, 6311
USED ON
Buick (2006-2006) ** Cadillac (2002-2002) ** Chevrolet (1999-2010) ** GMC (1999-2006) ** Isuzu (2003-2006) ** Oldsmobile (1999-2002) ** Saab (2005-2006)
UNIT NUMBERS
Delco 10311493, 10464395, 10464405, 10464405, 10464443, 10464443, 10464452, 10464453, 10464455, 10464456, 10464476, 10480234, 10480234, 10480285, 10480326, 10480327, 10480341, 10480383, 10480390, 10480390, 10480476, 15200109, 15226003, 15750871, 15754097, 15754097A, 15754097M, 15754097W, 15768829, 15768830, 18000002, 19244728, 19244731, 19244745, 19244746, 22781130; GM 10464395, 10464405, 10464443, 10464451, 10464453, 10464455, 10464456, 10464469, 15263859, 19151921, 19244731, 19244738, 19244751; Isuzu 8104644760, 8152260030; Original Reference Number 10480234W, 10480326M, 10480326M, 10480341W; Saab 15-22-6003
