DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- LRC 9 SECOND
- PLUG CODE 282
- SYSTEM VOLTAGE 12
- TERMINALS D, IG, L
- VOLT SET 14.5
- MFR:DENSO
- DIM 1:63.5mm Mtg. Length
- FEATURE 1:100% New Transpo
- NOTE 1:Active lamp function - with output.
- NOTE 2:Similar to IN221-1 except: IN221-1: wo / LRC. IN435: w/ LRC.
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset, w/ LRC
- TYPE Brush Holder
- DIST MTG HOLES 26.1
- HEIGHT 25.93
- LENGTH OA 22.66
- MOUNTING HOLE SIZE 4.3
- VOLT 12
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing
- ID 15
- IND REF NUM 336
- OD 46
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 14
- TYPE Slip Ring
- ID 8.85
- LENGTH RING 1 9.55
- LENGTH RING 2 9.7
- LENGTH RINGS 20.7
- OD SLIP RING 14.5
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

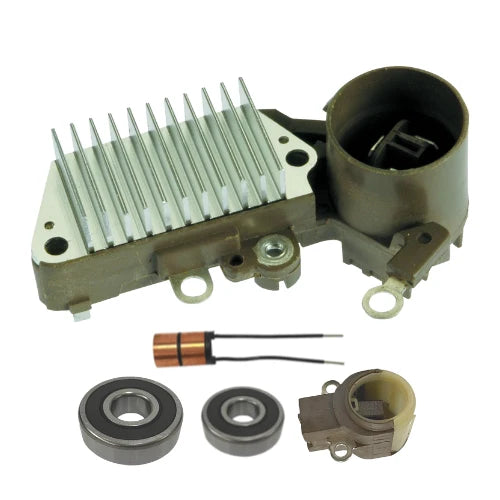

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Asuna Geo Isuzu Jaguar and more.
Asuna
- Nova L4 1.6L 1985-1988
- Spectrum L4 1.5L 1985-1988
Geo
- Charade L4 1.3L 1989-1992
Isuzu
- Prizm L4 1.6L 1989-1992
- Spectrum L4 1.5L 1989
Jaguar
- I-Mark L4 1.5L 1985-1989
- Impulse L4 2.0L 1985-1989
- Impulse L4 2.3L 1988-1989
Interchange #
Regulator
IN435
Brush Holder Assy
39-8200
Bearing, Ball
10-3042-4, 10-3042-4E, 10-3042-4W
Slip Ring, Rotor
28-82853
Lester
13391, 13423, 13424, 13524, 13569, 13690, 13705
Replaces
Denso 126000-1200, Isuzu 8970320910, Jaguar JLM-11144
USED ON
Asuna (1993) ** Geo (1990-1993) ** Isuzu (1990-1993) ** Jaguar (1993-1997) **
UNIT NUMBERS
Denso 100211-6310, 100211-6320, 100211-6450, 100211-7950, 100211-7951, 100211-7952, 100211-7990, 100211-8530, 100211-8680, 100211-8980, 101211-0160, 101211-7640; GM 97023652, 97027568, 97029986, 97070343, 97070343; Isuzu 2911232080, 2911232080, 2911232220, 2911232260, 2911233080, 8940236520, 8970236520, 8970275680, 8970275681, 8970275682, 8970299860, 8970299861, 8970426280, 8970638121, 8970703430, 8970703430, 8976299861; Jaguar DBC-11590, DBC-6819, LNA-1800DA, LNA18000BA, LNA1800AA
