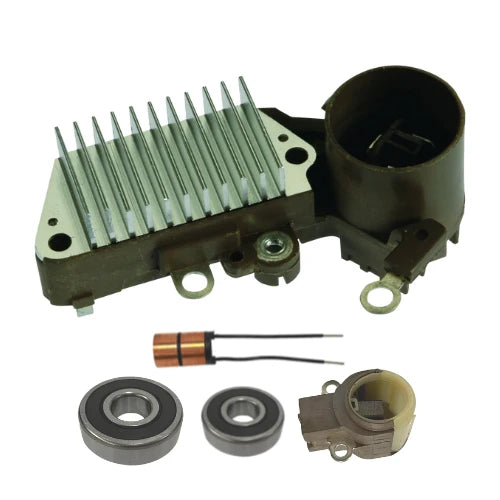

Fits New Alternator kit 6 Lexus Toyota Regulator Brush Holder Bearings Slip Ring

Fits New Alternator kit 6 Lexus Toyota Regulator Brush Holder Bearings Slip Ring

$38.71 USD
$0.00 USD $38.71 USD
Sale Sold out
View full details


DESCRIPTION

  Specifications and Features:

  • TYPE           Regulator
  • CIRCUIT A-CIRCUIT
  • LENGTH MOUNTING 63.5
  • LRC 9 SECOND
  • PLUG CODE 280
  • SYSTEM VOLTAGE 12
  • TERMINALS S, IG, L
  • VOLT SET 14.6
  • MFR:DENSO
  • DIM 1:63.5mm Mtg. Length
  • FEATURE 1:100% New Transpo
  • NOTE 1:Standard lamp function - no output.
  • SPECS FOR:Denso IR/IF Alternators
  • SPECS:12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset, 5 sec. LRC
  • TYPE          Brush Holder
  • HEIGHT 23.7
  • LENGTH OA 43.3
  • TYPE          Brushes
  • CONTACT SURFACE CONCAVE
  • INSULATED LEAD NO
  • LEAD ATTACH LOCATION SIDE
  • LENGTH 15
  • LENGTH LEAD 48
  • TERMINATION TYPE NONE
  • THICK 4.8
  • VOLT 12
  • WIDTH 7
  • TYPE          Bearing
  • ID 17
  • IND REF NUM 333
  • OD 52
  • SIDE-1 FEATURE RUBBER SEAL
  • SIDE-2 FEATURE RUBBER SEAL
  • WIDTH 16
  • TYPE          Slip Ring
  • ID 5.8
  • LENGTH LEADS 11
  • LENGTH OA 46.5
  • LENGTH RING 1 8.2
  • LENGTH RING 2 8.2
  • OD SLIP RING 14.3

  Compatible Vehicles:
  *Please check the year, make, model and engine size. Thank you.


100% NEW REPLACEMENT
Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Lexus Toyota and more.
    Lexus
  • ES300 V6 3.0L 1992
  • MR2 L4 2.0L 1991-1993
  • MR2 L4 2.2L 1992-1993
  • SC300 L6 3.0L 1992-1994
  • SC400 V8 4.0L 1992-1994

    Toyota
  • Camry L4 2.2L 1992-1993
  • Camry V6 3.0L 1992
  • Celica L4 2.0L 1992-1993
  • Celica L4 2.2L 1992



Interchange #
Regulator
IN438, IN438HD, IN438HD-B50

Brush Holder Assy
39-8203-3

Brushes
38-8201

Bearing, Ball
10-3042-4, 10-3042-4E, 10-3042-4W

Slip Ring, Rotor
28-82851, RCP-44763

Lester
12195, 13338, 13389, 13396, 13397, 13397, 13407, 13407, 13410, 13411, 13440, 13440, 13454, 13498, 13525, 21214, 22612, 22612, 22612


Replaces
Denso 126000-1110, 126000-1260, 126000-1270, Toyota 27700-46030, 27700-46040



USED ON
Lexus (1991-1994) ** Toyota (1992-1993)


UNIT NUMBERS
Delco 10459517; Denso 100211-6300, 100211-6360, 100211-6410, 100211-6420, 100211-7470, 100211-7910, 100211-8330, 100211-8560, 100211-8570, 100211-8660, 100211-8670, 100211-8810, 100211-8820, 100211-8830, 100211-8870, 100211-9780, 100211-9790, 100211-9890, 101211-5220, 101211-5360, 9760211-747; John Deere RE46608, SE501380, TY6762; Lexus 27060-46030, 27060-46030-84, 27060-50040, 27060-50040-84, 27060-62070, 27060-62070-84; Mack Truck AT-00154R; Toyota 27060-03010, 27060-03011, 27060-03011-84, 27060-03011-84, 27060-15050, 27060-15060, 27060-46080, 27060-62070, 27060-62070-84, 27060-74090, 27060-74110, 27060-74210, 27060-74210-84, 27060-74220, 27060-74270, 27060-74270-84, 27060-74290, 27060-74291, 27060-74291-84, 27060-74291-84, 27060-74300, 27060-74310, 27060-74310-84, 27060-74320, 27060-74330, 27060-74330-84
