DESCRIPTION
Specifications and Features:
- TYPE Regulator
- ACTIVATION IGNITION ACTIVATED
- CIRCUIT B-CIRCUIT
- LENGTH MOUNTING MTG LENGTH
- LRC W/ LRC
- PLUG CODE 295
- PLUG TYPE 295
- SYSTEM VOLTAGE 12
- VOLT SET 14.1
- MFR:DENSO
- DIM 1:63.5mm Mtg. Length
- FEATURE 1:100% New Transpo
- FEATURE 2:Ignition activated
- FEATURE 3:Soft start, LRC
- FEATURE 4:Short-circuit protection: lamp, field
- NOTE 1:This regulator will work correctly in Toyota Yaris with daylight running lights.
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, B-Circuit, IG-S-L-FR Terminals, 14.1 Vset, w/ LRC
- TYPE Brush Holder
- DIST MTG HOLES 26.1
- HEIGHT 25.93
- LENGTH OA 22.66
- MOUNTING HOLE SIZE 4.3
- VOLT 12
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing
- ID 20
- IND REF NUM 6204
- OD 47
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 14
- TYPE Slip Ring
- ID 8.85
- LENGTH RING 1 9.55
- LENGTH RING 2 9.7
- LENGTH RINGS 20.7
- OD SLIP RING 14.5
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

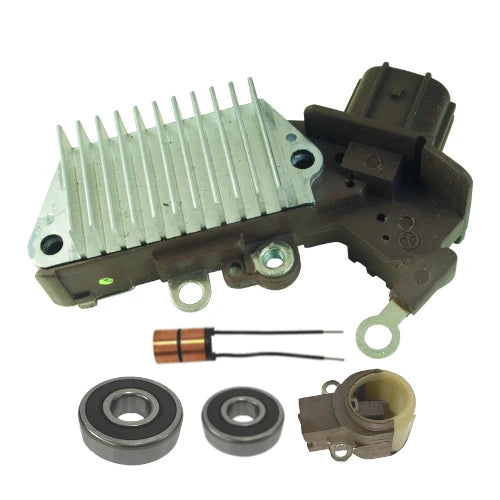

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Toyota and more.
Toyota
- Yaris L4 1.5L 2006-2015
- Tacoma L4 2.7L 2005-2016
Interchange #
Regulator
IN3054, IN3052, VRH2005-100A
Brush Holder Assy
39-8200
Brushes
38-8201
Bearing, Ball
6-204-4, 6-204-4N, 6-204-4NB, 6-204-4W
Slip Ring, Rotor
28-82853
Lester
11194, 11203, 11354, 11354, 11505
Replaces
Denso 126600-0520, 126600-0540, GS2M 0520, GS2M 0540, Toyota 27700-21050, 27700-75030
USED ON
Toyota (2005-2016) **
UNIT NUMBERS
Denso 104210-8110, 104210-8180, 104210-8230, 104210-8232, 104210-840, 104210-8400, 104210-8401, 104210-8590, 104210-8591; Toyota 27060-21150, 27060-21151, 27060-21151, 27060-75310, 27060-75310-84, 27060-75410, 27060-75411, 27060-75411-84, 27060-75412, 27060-75490, 27060-75490
