DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- LRC WO /LRC
- PLUG CODE 331
- SYSTEM VOLTAGE 12
- TERMINALS I, D, A
- VOLT SET 14.6
- MFR:FORD
- FEATURE 1:100% New Transpo
- NOTE 1:Similar to F796 except F796 w/ LRC feature.
- SPECS FOR:Ford 4G Series IR/IF Alternators
- SPECS:12 Volt, A-Circuit, I-D-A Terminals, 14.4 Vset, w/o LRC, Gray
- TYPE Brushes
- CONTACT SURFACE FLAT
- INSULATED LEAD NO
- LEAD ATTACH LOCATION TOP
- LENGTH 22
- LENGTH LEAD 73
- THICK 5
- WIDTH 8
- TYPE Slip Ring
- ID 13.4
- LENGTH LEADS 30
- LENGTH RING 1 7.8
- LENGTH RING 2 9.9
- LENGTH RINGS 18.9
- OD SLIP RING 27
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

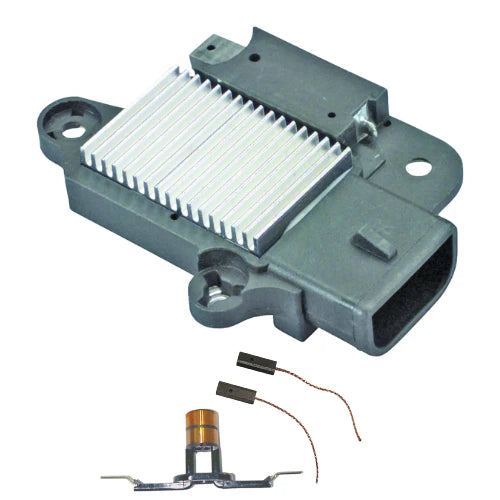

Regulator/Brushes/Slip Ring
For Ford Mercury Lincoln and more.
Ford
- Crown Victoria V8 4.6L 1996-1998
- E-450 Super Duty V8 6.0L 2004-2008
- F-450 Super Duty V8 6.0L 2004-2007
- F-550 Super Duty V8 6.0L 2004-2007
- Explorer V6 4.0L 1997-2004
- Explorer V8 5.0L 1996-2001
- Explorer Sport V6 4.0L 2001-2003
- Explorer Sport Trac V6 4.0L 2001-2004
- E-350 Super Duty V8 6.0L 2005-2010
- F-150 V8 5.4L 1999-2003
- F-150 Heritage V8 5.4L 2004
- F-250 Super Duty V8 6.0L 2006-2007
- F-350 Super Duty V8 6.0L 2006-2007
- Lobo V8 5.4L 2000
- GT V8 5.4L 2005-2006
- Mustang V8 4.6L 1996-1999
- Mustang V8 4.6L 2003-2004
- Mustang V8 4.6L 2001
Mercury
- Mountaineer V6 4.0L 1998-2004
- Mountaineer V8 5.0L 1997-2001
Lincoln
- Mark VIII V8 4.6L 1996-1998
Interchange #
Regulator
102240, F798, F798HD, 102040, 132126P, 35-210, F798-B100
Brushes
38-217-1
Slip Ring, Rotor
28-2859, 28-2859-10
Lester
7781, 7781, 7787, 7787, 7787, 8251, 8251, 8436, 8477
Replaces
Ford F6DU-10C359-AA, F6DY-10316-A, GR817, Visteon ALT-C-125
USED ON
Ford (1996-2010) ** Lincoln (1996-1998) ** Mercury (1997-2004)
UNIT NUMBERS
Ford 1L2U-10300-AA, 1L2U-10300-AB, 1L2Z-10346-AA, 1L2Z-10346-AARM, 1L2Z-10346-AB, 1L2Z-10346-ABRM, 1L2Z-10V346-ADRM, 1L3T-10300-AB, 2L3Z-10346-AARM, 3R3U-10300-AA, 3R3Z-10346-AB, 3R3Z-10V346-ACRM, 3R3Z-10V346-AERM, 4G7U-10300-AA, 4G7Z-10346-AA, 4G7Z-10346-AARM2, 4G7Z-10346-AARM3, 4G7Z10346AARM2, 4G7Z10346AARM2, 4U2Z-10V346-CQRM, 4U2Z-10V346-CXRM, 4U2Z-10V346-CZRM, 6C2T-10300-EB, 6C2Z-10346-EA, 6C2Z-10346-EARM1, 6C2Z-10346-EARM2, 6C2Z-10V346-CARM, 6C2Z-10V346-EBRM, ER10300B, F6LU-10300-CA, F6LU-10300-CB, F6LU-10300-CC, F6LU-10300-CD, F6LY-10346-A, F6LY-10346-ARM, F6LY-10V346-AARM, F6LY-10V346-ACRM, F6ZU-10300-BB, F6ZU-10300-BC, F6ZU-10300-BE, F6ZU-10300-BG, F6ZZ-10346-B, F6ZZ-10346-BRM, F6ZZ-10V346-BARM, F77U-10300-AB, F77U-10300-AC, F77Z-10346-AB, F77Z-10346-ABRM, F77Z-10V346-ACRM, XL2U-10300-AA, XL2Z-10346-AA, XL2Z-10346-AARM, XL2Z-10V346-ABRM, XL3U-10300-AA, XL3U-10300-AB, XL3Z-10346-AA, XL3Z-10346-AARM, XL3Z-10V346-ABRM, XL3Z-10V346-ADRM, YR3U-10300-AA, YR3U-10300-AB, YR3Z-10346-AA, YR3Z-10346-AARM, YR3Z-10V346-ABRM, YR3Z-10V346-ACRM; Ford Engineering 1L2U-AA, 1L2U-AB, 1L3T-AB, 3R3U-AA, 4G7U-AA, 6C2T-EB, F6LU-CA, F6LU-CB, F6LU-CC, F6LU-CD, F6ZU-BB, F6ZU-BC, F6ZU-BE, F6ZU-BG, F77U-AB, F77U-AC, XL2U-AA, XL3U-AA, XL3U-AB, YR3U-AA; Visteon 4N, 9J, BF, BG, BG, BK, BQ, R31
