DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- ID BRUSH RING 23.5
- SYSTEM VOLTAGE 12
- TERMINALS LIN
- MFR: MITSUBISHI
- DIM 1:23.5mm ID Brush Ring
- FEATURE 1:100% New Transpo
- FEATURE 2:LIN2 (COM) Terminal Function
- FEATURE 3:COM ID Code: 29
- FEATURE 4:Field Rating 5 Amps
- FEATURE 5:Voltage Set point and Regulation Mode is controlled by Vehicle
- FEATURE 6:Short Circuit Protection
- SPECS FOR:Mitsubishi IR/IF Alternators
- SPECS:12 Volt, A-Circuit, Low Side Drive Regulator, LIN Terminals, 14.5 Vset
- TYPE Bearing
- ID 8
- IND REF NUM SC8A05LHI
- OD 23
- OUTER RACE FEATURE 2-TEFLON RINGS
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 14
- TYPE Slip Ring
- ID 12.6
- LENGTH RING 1 7.5
- LENGTH RING 2 7.5
- LENGTH RINGS 17
- OD SLIP RING 22.6
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

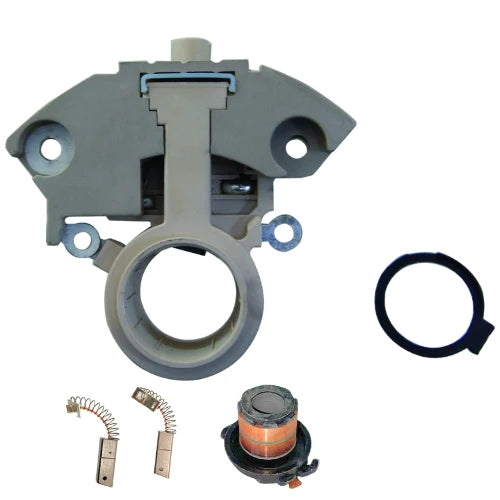

Regulator/Brushes/Slip Ring
For Honda and more.
Honda
- Accord L4 2.4L 2013-2017
Interchange #
Regulator
IM624
Slip Ring, Rotor
28-83852
Lester
14488, 14489
Replaces
Honda 31150-5A2-A01, Mitsubishi 700, 7005401D, 70065401
USED ON
Honda (2013-2017)
UNIT NUMBERS
Honda 31100-5A2-A02, 31100-5A2-A02RM, 31100-5A2-AA000M2, 31100-5B0-Y02, 31100-5B0-Y02RM, AHGA87, AHGA88; Mitsubishi A005TL0581, A005TL0581ZC, A5TL0591ZC
