DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- SYSTEM VOLTAGE 12
- TERMINALS Dummy - D - P
- VOLT SET 14
- FEATURE 1:100% New Transpo
- FEATURE 2:Heavy Duty Drive Transistor
- NOTE 1:Caution - Traditional bench test methods immediately damage D-P type regulators. Avoid damage by using Transpo VRC101-26 Test Adapter.
- SPECS FOR:Mitsubishi ED/IF Alternator
- SPECS:12 Volt, A-Circuit, 14.0 Vset, Low Side Drive, PD Regulator
- TYPE Slip Ring
- ID 12.6
- LENGTH RING 1 7.5
- LENGTH RING 2 7.5
- LENGTH RINGS 17
- OD SLIP RING 22.6
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

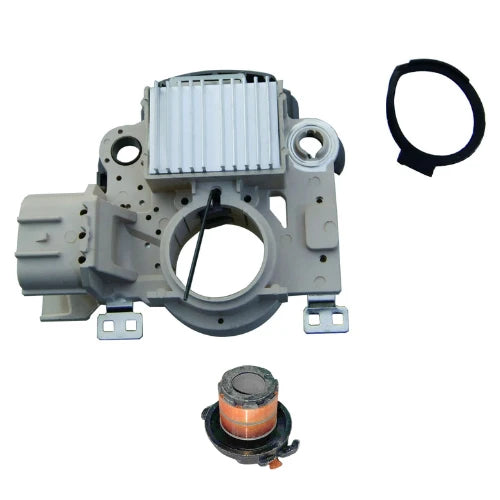

Regulator/Brushes/Slip Ring
For Mazda and more.
Mazda
- 2 L4 1.5L 2011-2014
- 3 L4 2.0L 2014
- RX-8 R2 1.3L 1308cc 2009-2011
Interchange #
Regulator
IM581
Slip Ring, Rotor
28-83852
Lester
11329, 11578, 11836, 23945
Replaces
Mitsubishi 561
USED ON
Mazda (2009-2014)
UNIT NUMBERS
Ford AMA431; Mazda N3R1-18-300, RF7J-18-300A, RF8G-18-300, RF8G-18-300A, RFBG-18-300, ZJ38-18-300; Mitsubishi A00002TG1391ZC, A002TG1391, A002TG1391ZC, A002TG1391ZD, A003TB6581, A003TB6781, A003TB6781A, A003TG5691; Original Reference Number A11578MI
