DESCRIPTION
Specifications and Features:
• TYPE: Regulator
• ACTIVATION: Stator
• CIRCUIT: A-CIRCUIT
• GROUND: N
• LENGTH: MOUNTING MTG LENGTH
• LRC: Y
• PLUG CODE: 379
• PLUG TYPE: 379
• SOFT START: Y
• SYSTEM VOLTAGE: 12
• VOLT SET: 10.7 to 16.0
• MFR: BOSCH
• FEATURE 1: 100% New Transpo
• FEATURE 2: BSS (COM) Regulator
• FEATURE 3: COM ID Code: 12
• FEATURE 4: A-Circuit, Voltage Set Range from 10.7V to 16.0V Controlled by BSS Signal
• FEATURE 5: COM-BSS Regulator
• FEATURE 6: Field Short Circuit Protection
• FEATURE 7: LRC and Soft Start
• FEATURE 8: Stator Activated
• NOTE 1: Companion rectifier IBR216 and IBR201
• SPECS FOR: Bosch IR/IF Alternators
• SPECS: 12 Volt, A-Circuit, BSS-FR Terminals
TYPE: Slip Ring
• ID: 7
• LENGTH RING 1: 7.9
• LENGTH RING 2: 7.9
• LENGTH RINGS: 17.7
• OD SLIP RING: 15.4
Compatible Vehicles:
Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

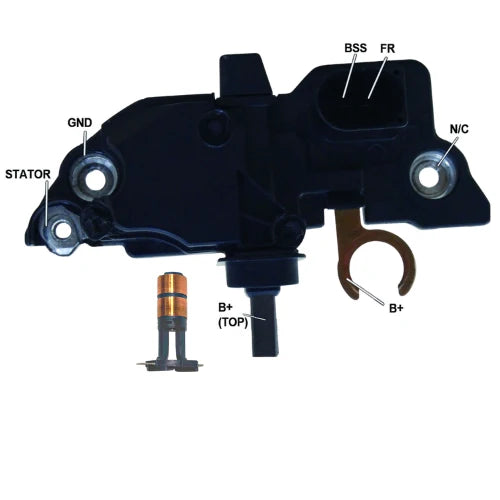

Regulator/Brushes/Slip Ring
For Mercedes-Benz and more.
Mercedes-Benz:
• C230 L4 1.8L 2003-2005
Interchange #
Regulator
IB293
Slip Ring, Rotor
28-91852
Lester
13954, 23248, 23285, 23285, 23964
Replaces
Bosch F 00M 144 147, F 00M 145 272, F 00M 145 293, F 00M 145 367, F 00M 145 385, Mercedes-Benz 003-154-37-06, 003-154-58-06
USED ON
Mercedes-Benz (2003-2005)
UNIT NUMBERS
Bosch 0 124 515 088, 0 124 515 198, 0 124 615 022, 0 124 615 028, 0 124 625 017, 0 124 625 022
Marelli 063536150280
Mercedes-Benz 012-154-06-02, 013-154-21-02, 271 154 09 02, 271-154-02-02, 271-154-06-02, 271-154-08-02, 271-154-08-02, 271-154-10-02, 628-154-01-02, A 271 154 09 02, A013-154-21-02, A2711540202, A2711540802, A2711540802, A2711541002, A6281540102
