DESCRIPTION
Specifications and Features:

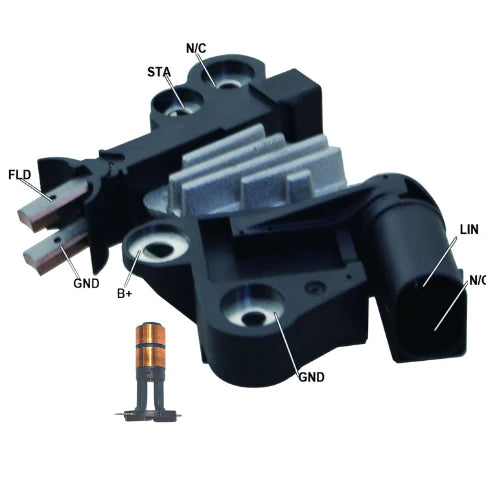

• TYPE: Regulator
• FEATURE 1: COM ID Code: 56
• FEATURE 2: B-Circuit, Default Volt Set 14.40 Volts
• FEATURE 3: Computer Controlled LIN Regulator
• FEATURE 4: LIN-NA Terminals
• FEATURE 5: LIN or Stator Activated
• FEATURE 6: Soft-Start and LRC.
• FEATURE 7: Field Short Circuit Protection
• NOTE 1: Companion Rectifier Positive Assy. IBR24006
• NOTE 2: Companion Rectifier full Assy. IBR4006
• SPECS FOR: Bosch 180A IR/IF Alternators
• SPECS: 12 Volt, B-Circuit, LIN-NA Terminals, 14.4 Vset
TYPE: Slip Ring
• ID: 7
• LENGTH RING 1: 7.9
• LENGTH RING 2: 7.9
• LENGTH RINGS: 17.7
• OD SLIP RING: 15.4
Compatible Vehicles:
Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT
Regulator/Brushes/Slip Ring
For Mercedes-Benz and more.
Mercedes-Benz
• C280 V6 3.0L 2008-2009
• C63 AMG V8 6.3L 2008-2015
• CL500 V8 5.5L 2008
• CL500 V8 5.5L 2010
• CL550 V8 5.5L 2007-2010
• CLK550 V8 5.5L 2007-2009
• CLK63 AMG V8 6.3L 2007-2009
• CLS550 V8 5.5L 2007-2011
• CLS63 AMG V8 6.3L 2007-2011
• E280 V6 3.0L 2007
• E300 V6 3.0L 2008-2009
• E320 V6 3.0L 2007-2009
• E350 V6 3.5L 2006-2011
• E550 V8 5.5L 2007-2011
• E63 AMG V8 6.3L 2007-2011
• R350 V6 3.5L 2007-2010
• R63 AMG V8 6.3L 2007
• S450 V8 4.7L 2009
• S550 V8 5.5L 2007-2011
• SL550 V8 5.5L 2007-2009
• SL550 V8 5.5L 2011-2012
• SL63 AMG V8 6.3L 2011-2012
• SL63 AMG V8 6.3L 2009
• SL65 AMG V12 6.0L 2014-2018
• SLK350 V6 3.5L 2010
• G550 V8 5.5L 2009-2015
• G65 AMG V12 6.0L 2016-2018
• GL450 V8 4.7L 2008-2009
• GL500 V8 5.5L 2008
• GL550 V8 5.5L 2008-2010
• ML350 V6 3.5L 2008-2010
• ML450 V6 3.5L 2010
• ML500 V8 4.7L 2013
• ML500 V8 5.5L 2009-2010
• ML550 V8 5.5L 2008-2010
• ML63 AMG V8 6.3L 2007-2011
Interchange #
Regulator
IB6037
Slip Ring, Rotor
28-91852
Lester
11220, 11220, 11303, 11307, 11307, 20036, 20036
Replaces
Bosch F 00M 346 008, F 00M 346 021, F 00M 346 037, F 00M 346 047, F 00M 346 080
USED ON
Mercedes-Benz (2006-2018)
UNIT NUMBERS
Bosch 0 121 715 006, 0 121 715 007, 0 121 715 011, 0 121 715 014, 0 121 715 015, 0 121 715 029, 0 121 715 107, 0 121 715 114, 0 121 715 115, 0 121 715 129
Marelli 063537151140
Mercedes-Benz 000-906-05-06, 013 154 35 02, 013-154-35-02, 013-154-56-02, 013-154-64-02, 013-154-70-02, 013-154-90-02, 156-154-01-02, 272-154-08-02, A 013 154 35 02, A-000-906-05-06, A-013-154-56-02, A013-154-64-02, A013-154-70-02, A013-154-90-02, A0131543502, A13-154-70-02, A1561540102, A2721540802
Steyr 013-154-70-02
