Specifications and Features
Regulator
- Type: Regulator
- Circuit: A-Circuit
- Plug Code: 282
- System Voltage: 12 Volt
- Terminals: D, IG, L
- Voltage Set: 14.5 V
- Manufacturer: Denso
- Dimension: 63.5 mm Mounting Length
- Feature: 100% New Transpo
- Note 1: Standard lamp function — no output.
- Note 2: Not interchangeable with IN221-1 with active lamp function.
- Specifications For: Denso IR/IF Alternators
- Specifications: 12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset
Slip Ring
- Type: Slip Ring
- ID: 8.85
- Length Ring 1: 9.55
- Length Ring 2: 9.7
- Length Rings: 20.7
- OD Slip Ring: 14.5
Compatible Vehicles
Please check the year, make, model, and engine size before purchasing.
Pontiac
- Firefly L3 1.0L — 1987–1988
- Firefly L3 1.0L — 1987–1988
Suzuki
- Forsa L3 1.0L — 1987–1988
- Forsa L3 1.0L — 1987–1988
- Samurai L4 1.3L — 1985–1986
- SJ413 L4 1.3L — 1985

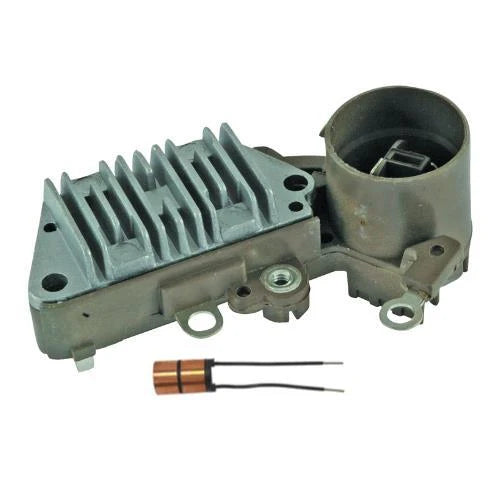

100% New Replacement
Regulator / Slip Ring
For Pontiac, Suzuki, and more.
Interchange Numbers
Regulator
IN219
Slip Ring, Rotor
28-82853
Lester
11156, 11156, 11183, 11237, 11250, 11250, 11367, 11647, 11787
Replaces
- Denso: 126000-0410, 126000-0411, 126000-0470
- GM: 96052000
- Honda: 31500-PEO-003
- Suzuki: 32500-82610
Used On
- Pontiac: 1987–1988
- Suzuki: 1985–1988
Unit Numbers
Daihatsu Motor Co
27060-87108, 27060-87109
Denso
100211-1410, 100211-1411, 100211-2230, 100211-2290, 100211-2291, 100211-3380, 100211-3640, 100211-4270, 100211-9720, 101211-5280
GM
96055601
Isuzu
1759954012, 8944139970, 8944410681, 8944610911
Suzuki
31400-82611
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 1988 | Pontiac | Firefly | Base Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1988 | Pontiac | Firefly | Base Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged |
| 1988 | Pontiac | Firefly | Base Hatchback 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1988 | Pontiac | Firefly | Base Hatchback 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged |
| 1988 | Pontiac | Firefly | Base Sedan 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1988 | Pontiac | Firefly | Base Sedan 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged |
| 1988 | Suzuki | Forsa | Base Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS Naturally Aspirated |
| 1988 | Suzuki | Forsa | Base Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS Turbocharged |
| 1988 | Suzuki | Forsa | V Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS Naturally Aspirated |
| 1987 | Pontiac | Firefly | Base Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1987 | Pontiac | Firefly | Base Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged |
| 1987 | Pontiac | Firefly | Base Hatchback 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1987 | Pontiac | Firefly | Base Hatchback 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged |
| 1987 | Pontiac | Firefly | Base Sedan 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1987 | Pontiac | Firefly | Base Sedan 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged |
| 1987 | Suzuki | Forsa | Base Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS Naturally Aspirated |
| 1987 | Suzuki | Forsa | Base Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS Turbocharged |
| 1987 | Suzuki | Forsa | V Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS Naturally Aspirated |
| 1986 | Suzuki | Samurai | JA Sport Utility 2-Door | 1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1986 | Suzuki | Samurai | JX SE Sport Utility 2-Door | 1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1986 | Suzuki | Samurai | JX Sport Utility 2-Door | 1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated |
| 1985 | Suzuki | Samurai | Base Sport Utility 2-Door | 1.3L 1325CC 81Cu. In. l4 GAS Naturally Aspirated |
| 1985 | Suzuki | SJ413 | Base Sport Utility 2-Door | 1.3L 1298CC 79Cu. In. l4 GAS Naturally Aspirated |
