For Bosch Toyota Tacoma 2005-2009 Replacmenet New Alternator Regulator ib236

For Bosch Toyota Tacoma 2005-2009 Replacmenet New Alternator Regulator ib236

$40.75 USD
$0.00 USD $40.75 USD
Sale Sold out
View full details


DESCRIPTION

  Specifications and Features:

  • TYPE          Regulator
  • CIRCUIT A-CIRCUIT
  • LAMP ACTIVE LAMP - WITH OUTPUT
  • LRC 5 SECOND
  • SYSTEM VOLTAGE 12

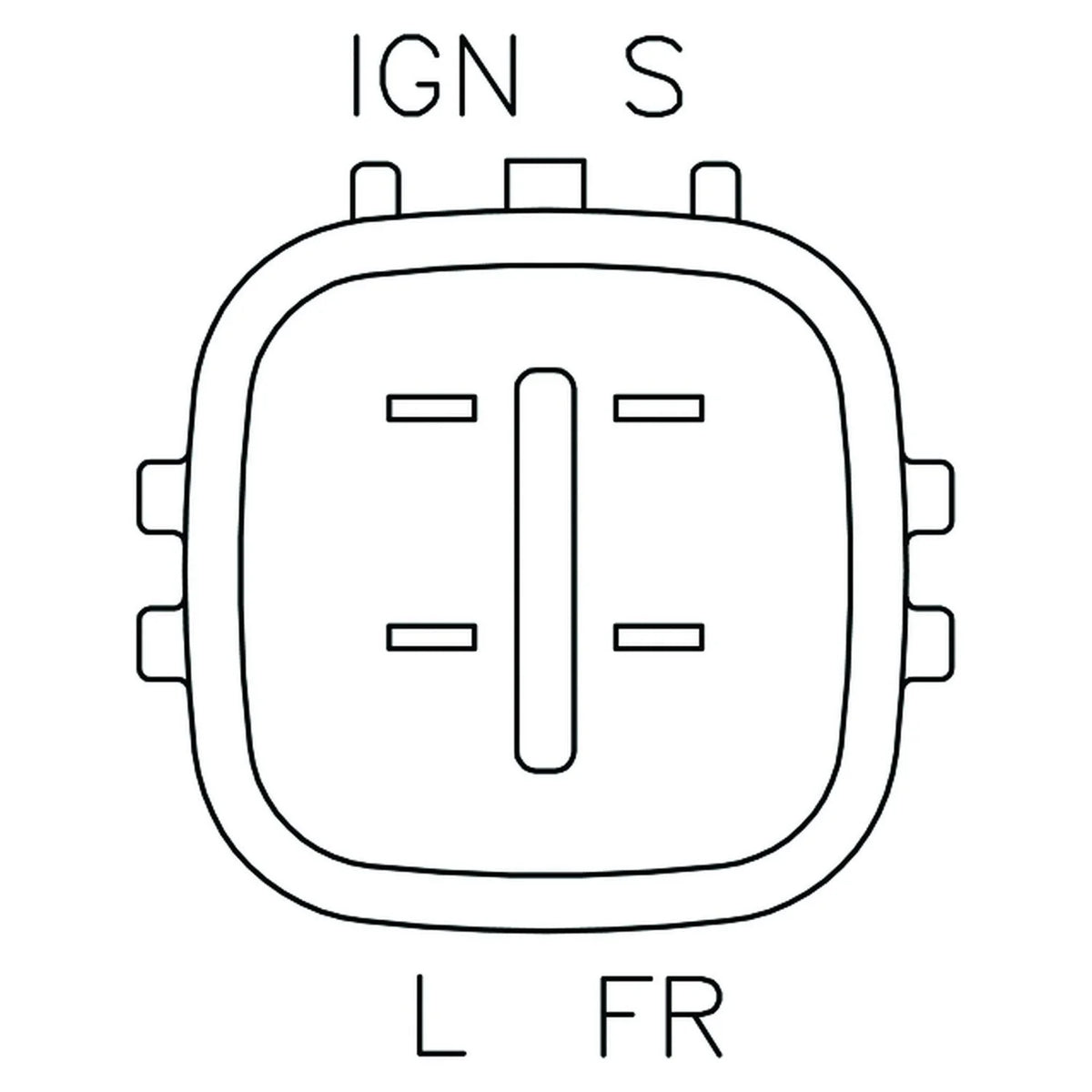

  • TERMINALS IG, S, L, DFM
  • VOLT SET 14.4
  • MFR:BOSCH
  • FEATURE 1:100% New Transpo
  • FEATURE 2:External sense
  • FEATURE 3:Ignition activated but will lamp activate and stator start
  • FEATURE 4:Shorted field, lamp & choke protection
  • NOTE 1:Active lamp function - with output.
  • SPECS FOR:Bosch IR/IF Alternators
  • SPECS:12 Volt, A-Circuit, IG-S-L-DFM Terminals, 14.4 Vset, 5 sec. LRC
  • TYPE          Bearing
  • ID 17
  • IND REF NUM 6003
  • OD 35
  • SIDE-1 FEATURE RUBBER SEAL
  • SIDE-2 FEATURE RUBBER SEAL
  • WIDTH 10
  • TYPE          Slip Ring
  • ID 7
  • LENGTH RING 1 7.9
  • LENGTH RING 2 7.9
  • LENGTH RINGS 17.7
  • OD SLIP RING 15.4

  Compatible Vehicles:
  *Please check the year, make, model and engine size. Thank you.


100% NEW REPLACEMENT

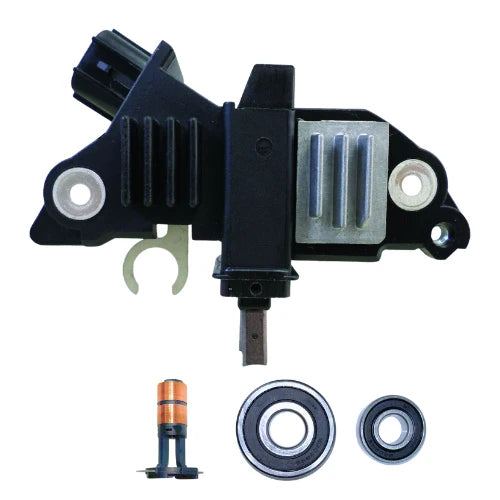

Regulator/Brushes/Bearings/Slip Ring
For Toyota and more.
    Toyota
  • Tacoma V6 4.0L 2005-2009


Interchange #
Regulator
IB236

Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W

Slip Ring, Rotor
28-91852

Lester
11129, 21027, 22375, 22514, 22517, 22518, 23189


Replaces
Bosch F 00M 145 236, F 00M 145 305, F 00M 145 324, F 00M 145 334, F 00M 145 376, F 00M 145 392, F 00M 145 865, F 00M 145 873, F 00M 145 874, Toyota 27700-0L020, 27702-0D020


USED ON
Toyota (2005-2009)


UNIT NUMBERS
Bosch 0 120 000 023, 0 120 888 888, 0 124 0AC 30B, 0 124 0AC 5HB, 0 124 0AD 39A, 0 124 0AD 39B, 0 124 225 051, 0 124 225 052, 0 124 225 053, 0 124 225 054, 0 124 315 015, 0 124 315 016, 0 124 315 024, 0 124 315 025, 0 124 315 029, 0 124 315 033, 0 124 315 034, 0 124 315 040, 0 124 315 045, 0 124 325 071, 0 124 325 079, 0 124 325 080, 0 124 325 082, 0 124 325 084, 0 124 325 085, 0 124 325 086, 0 124 325 123, 0 124 325 165, 0 124 325 167, F 004 225 000, F 004 225 100; Lucas LRA03632; Original Reference Number 301889RI, 59212103, 89212103, 89215470, ABO401A, ABO401C, ADT311179C, L 80 920; Toyota 27060 0Q030, 27060-007NL, 27060-0D020, 27060-0D020, 27060-0D030-A, 27060-0D030-B, 27060-0D140, 27060-0D140A, 27060-0H070, 27060-0H080, 27060-0H221, 27060-0J051, 27060-0J061, 27060-0L030, 27060-0L040, 27060-0L040, 27060-0L050, 27060-0L060-B, 27060-0P010, 27060-0P020-84, 27060-0P110, 27060-0Q040, 27060-OD140, 270600-D030, 270600D14084



SUPPORT

  • Pickup is available on this item, however we cannot give you the exact address or contact information until the purchase is made. That is eBay's policy. Once the purchase has been made you can contact us, or call eBay and they will provide our contact information for you. You may then call us to arrange a pickup.
  • If you have any questions, send us a message and we will be glad to help. Thank you
