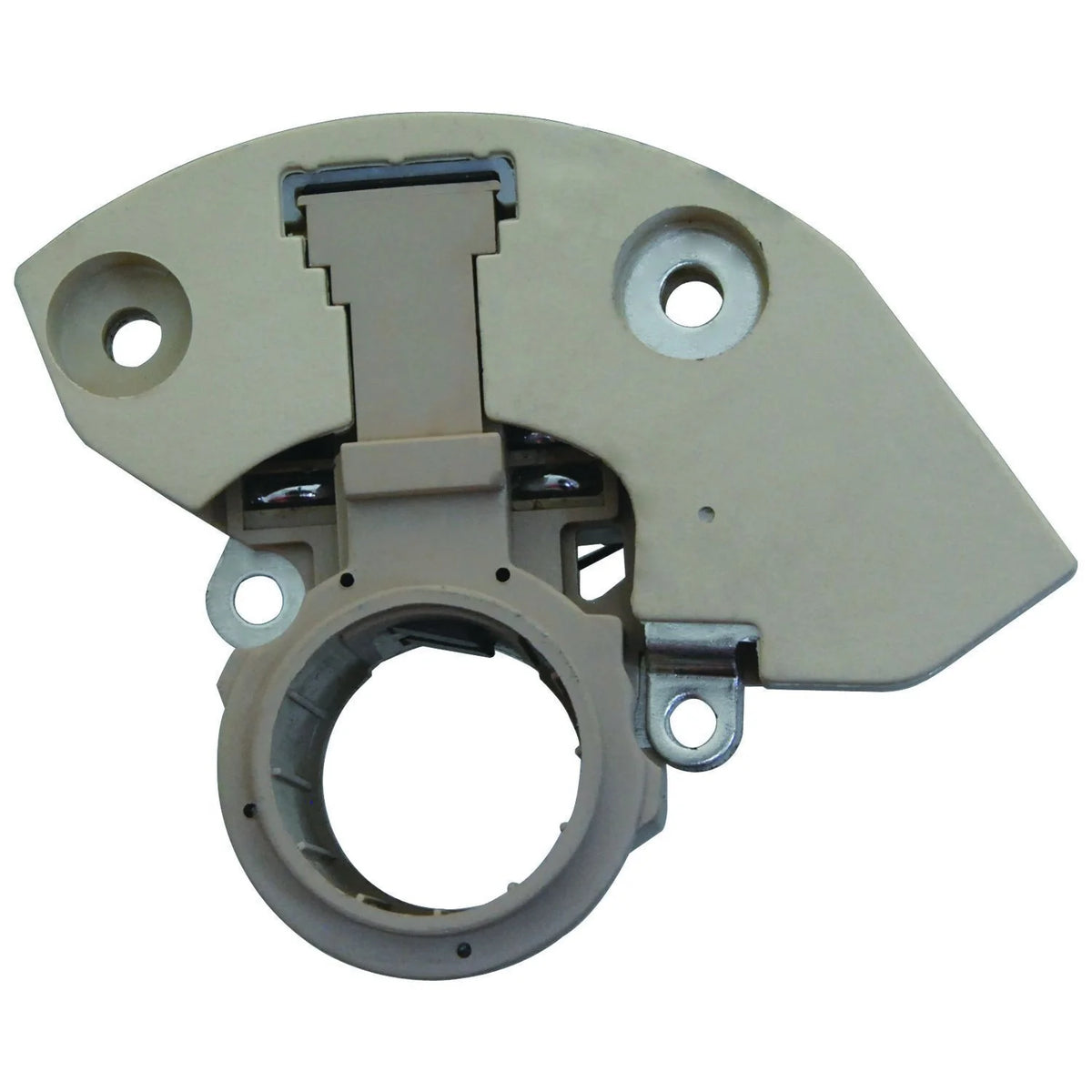

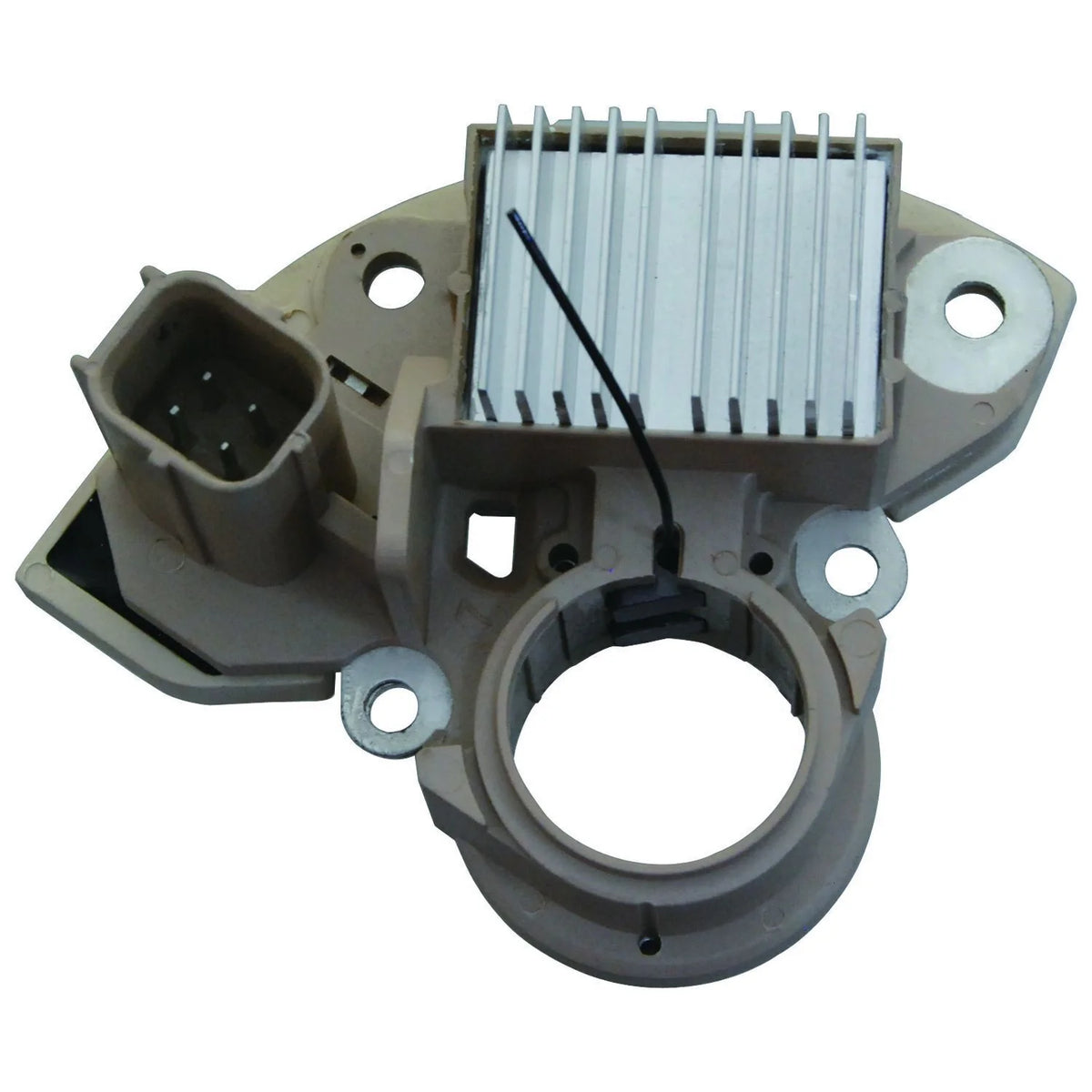

Alternator Regulator

Specifications and Features

Regulator

• Type: Regulator

• Circuit: A-Circuit

• System Voltage: 12 Volt

• Voltage Set: 14.6 V

• Manufacturer: Mitsubishi

• Feature 1: 100% New Transpo

• Feature 2: Computer-Controlled Regulator

• Feature 3: IGN/Light Activated

• Feature 4: Field Rating 5 Amps

• Feature 5: Vsat 0.5 Volts Typical, @ 5 Amps, 14 Volts

• Feature 6: With Soft

• Feature 7: With Field Short Circuit Protection

• Specifications For: Mitsubishi IR/IF Alternators

• Specifications: 12 Volt, A-Circuit, 14.7 Vset, Low Side Drive Regulator, L-IGN-FR-C Terminals

Compatible Vehicles

Please check the year, make, model, and engine size before purchasing.

Fits many makes and models of Honda and more.

Honda

• Fit L4 1.5L — 2009–2014

Interchange Numbers

Regulator

IM569

Lester

11410

Replaces

• Honda: 31150-RB0-004

• Mitsubishi: 605, 6050921F, A866X60582

• Original Reference Number: 1126-075RS

Used On

• Honda: 2009–2014

Unit Numbers

Honda

31100-RB0-004, 31100-RB0-0041, 31100-RB0-004RM, 31100-RB0-041, 31100-RB0A-0243, AHGA77

Mitsubishi

A005TJ0091, A5TJ0091ZD
