DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT B-CIRCUIT
- SYSTEM VOLTAGE 12

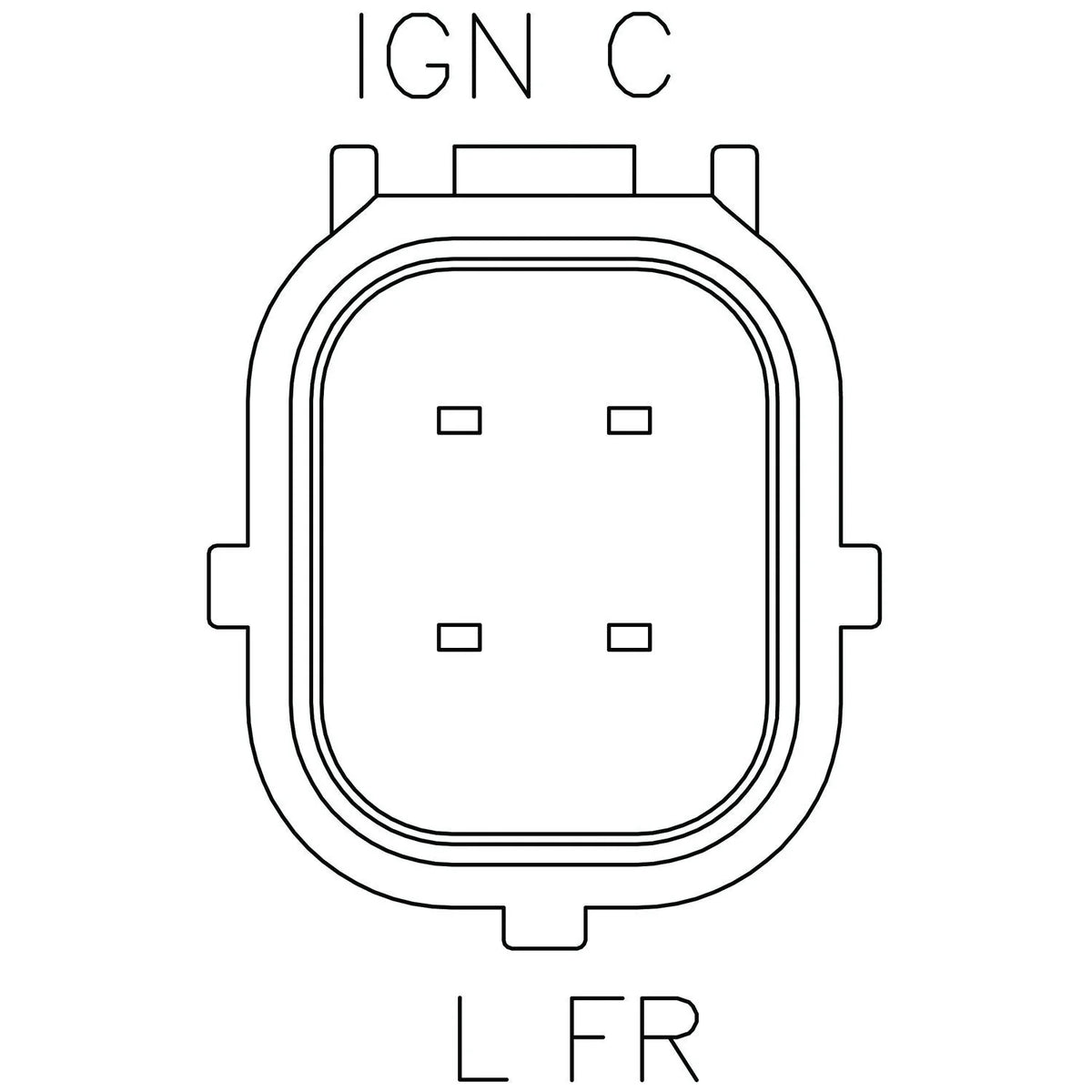

- TERMINALS IG, C, L, FR
- MFR:DENSO
- FEATURE 1:100% New Transpo
- FEATURE 2:Volt Set 14.35V
- FEATURE 3:Ignition Activated
- FEATURE 4:OE Compliant C-Function
- FEATURE 5:Standard Lamp Function - Without Output
- FEATURE 6:Field and Lamp short circuit protection
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, B-Circuit, IG-C-L-FR Terminals
- TYPE Brush Holder Assy
- DIST MTG HOLES 25.5
- HEIGHT 29.5
- VOLT 12
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing, Ball
- ID 15
- IND REF NUM 279
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 13
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

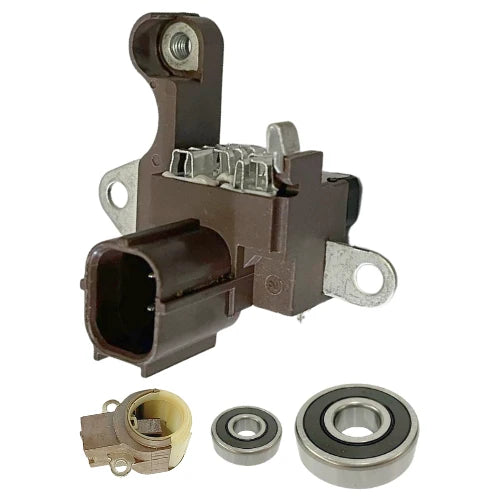

Regulator/Brush Holder/Brushes/Bearings
For Acura Honda and more.
Acura
- RL V6 3.7L 2009-2012
- TL V6 3.5L 2009-2014
- TL V6 3.7L 2009-2014
- TSX V6 3.5L 2010-2014
- MDX V6 3.7L 2010-2013
- ZDX V6 3.7L 2010-2013
Honda
- Accord V6 3.5L 2008-2012
- Accord Crosstour V6 3.5L 2010
- Pilot V6 3.5L 2009-2015
- Ridgeline V6 3.5L 2009-2014
- Odyssey V6 3.5L 2008-2017
Interchange #
Regulator
IN6365
Brush Holder Assy
39-8206
Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W
USED ON
Acura (2009-2014) ** Honda (2008-2017)
UNIT NUMBERS
Acura 31100-RGW-A01, 31100-RGW-A01RM, 31100-RV0-A11, 31100-RV0-A11RM, CSF92; Denso 104210-1240, 104210-1600, 104210-5910, 104210-5920, 104211-8520, TN104210-1600, TN104211-8520; Honda 06311-RV0-505RM, 31100-R70-A01, 31100-R70-A01RM, 31100-R70-A11, 31100-R70-A11RM, 31100-RGW-A01, 31100-RGW-A01RM, 31100-RV0-A01, 31100-RV0-A01RM, 31100-RV0-A11, 31100-RV0-A11RM, 31100-RV0-A12, 31100-RV0-A12RM, CSF91, CSF92, CSJ24, CSJ60, CSK52; Original Reference Number TN104210-5910
