DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT B-CIRCUIT
- SYSTEM VOLTAGE 12
- TERMINALS LIN
- VOLT SET 14.5
- TYPE Brush Holder
- DIST MTG HOLES 26.04
- HEIGHT 29.6
- ID 19.0
- LENGTH OA 43.19
- MOUNTING HOLE SIZE 4.36
- OD 26.11
- ROTATION CW
- VOLT 12
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing
- ID 15
- IND REF NUM 279
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 13
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

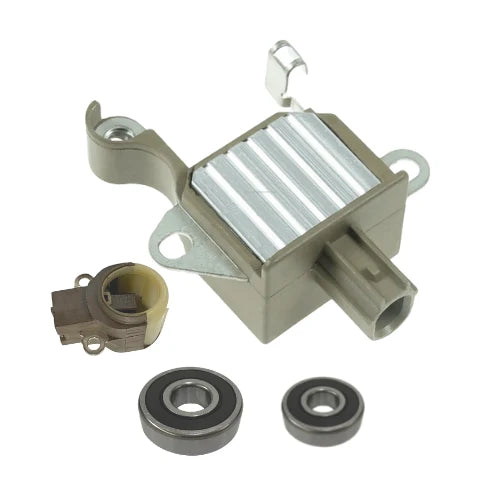

Regulator/Brush Holder/Brushes/Bearings
For Acura Honda and more.
Acura
- ILX L4 2.4L 2013-2022
- TLX L4 2.4L 2015-2020
Honda
- Civic L4 2.4L 2012-2015
- Crosstour L4 2.4L 2012-2015
- CR-V L4 2.4L 2012-2019
Interchange #
Regulator
IN6363
Brush Holder Assy
39-8206
Brushes
38-8201
Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W
USED ON
Acura (2013-2022) ** Honda (2012-2019) **
UNIT NUMBERS
Acura 31100-RTA-003, 31100-RTA-013, 31100-RTA-023, 31100-RWC-A01, 31100-RWC-A01RM, CSD73, CSF16; Denso 104210-4730, 104210-4731, 104210-4732, 104210-5160; Honda 31100-RTA-003, 31100-RTA-013, 31100-RTA-023, CSD73
