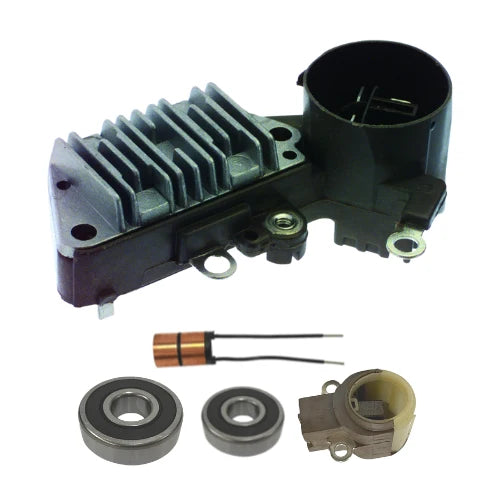

Name: For New Alternator kit 6 Acura Honda Regulator Brush Holder Bearings Slip Ring
Brand: Import
SKU: in224rk6
Price: 38.71 USD
Availability: InStock

DESCRIPTION

Specifications and Features:

TYPE Regulator
CIRCUIT A-CIRCUIT
LRC WO /LRC
PLUG CODE 294
SYSTEM VOLTAGE 12
TERMINALS C, FR, IG, L
VOLT SET 14.5
MFR:DENSO
DIM 1:63.5mm Mtg. Length
FEATURE 1:100% New Transpo
NOTE 1:Active lamp function - with output.
SPECS FOR:Denso IR/IF Alternators
SPECS:12 Volt, A-Circuit, C-FR-IG-L Terminals, 14.5 Vset

TYPE Brush Holder
HEIGHT 23.7
LENGTH OA 43.3

TYPE Brushes
CONTACT SURFACE CONCAVE
INSULATED LEAD NO
LEAD ATTACH LOCATION SIDE
LENGTH 15
LENGTH LEAD 48
TERMINATION TYPE NONE
THICK 4.8
VOLT 12
WIDTH 7

TYPE Bearing
ID 15
IND REF NUM 279
OD 35
SIDE-1 FEATURE RUBBER SEAL
SIDE-2 FEATURE RUBBER SEAL
WIDTH 13

TYPE Slip Ring
ID 8.85
LENGTH RING 1 9.55
LENGTH RING 2 9.7
LENGTH RINGS 20.7
OD SLIP RING 14.5

Compatible Vehicles:

*Please check the year, make, model and engine size. Thank you.

100% NEW REPLACEMENT

Regulator/Brush Holder/Brushes/Bearings/Slip Ring

For Acura Honda and more.

Acura

CL L4 2.2L 1997
Integra L4 1.6L 1988-1989
TL L5 2.5L 1995-1996
Vigor L5 2.5L 1992-1994

Honda

Accord L4 2.2L 1990-1997
Civic L4 1.5L 1988-1993
Civic L4 1.6L 1988-1995
Civic del Sol L4 1.5L 1993
Civic del Sol L4 1.6L 1993-1995
CRX L4 1.5L 1988-1991
CRX L4 1.6L 1988-1991
Prelude L4 2.2L 1992-1996
Prelude L4 2.3L 1992-1996

Interchange #

Regulator

IN224

Brush Holder Assy

39-8203-3

Brushes

38-8201

Bearing, Ball

10-2021-4, 10-2021-4E, 10-2021-4W

Slip Ring, Rotor

28-82853

Lester

13325, 13325, 13395, 13507, 13507, 13508, 13509, 13509, 13538, 13538, 13539, 13540, 13684, 14989

Replaces

Denso 126000-0940, 126000-1030, 126000-1300, 126000-1700, Honda 31150-P08-013, 31150-PM4-003, 31150-PT2-003

USED ON

Acura (1988-1997) ** Honda (1988-1997)

UNIT NUMBERS

Acura 31100-P0A-A01, 31100-P0A-A01RM, 31100-P0A-A03, 31100-P1R-A01, 31100-P1R-A01RM, 31100-PG7-J01, 31100-PG7-J01RM, 31100-PG7-J02, 31100-PV1-A01, 31100-PV1-A01RM, 31100-PV1-A02, CHA60, CJP56, CJS49, CJS50, CJU14; Denso 100211-3590, 100211-3660, 100211-3690, 100211-3890, 100211-8150, 100211-8151, 100211-8190, 100211-8280, 100211-8550, 100211-8710, 100211-8750, 100211-8770, 100211-9770, 101211-0250, 101211-5480, 101211-5490, 101211-5500, 101211-5690, 101211-5840, 101211-5850, 101211-5870, 101211-9140, 9760211-855, 9760211-875, 9761211-549, 9761211-550, 9761219-585; Honda 31100-P08-003, 31100-P08-003RM, 31100-P08-013, 31100-P08-014RM, 31100-P08-014RM, 31100-P08-024RM, 31100-P08-024RM, 31100-P0A-A01, 31100-P0A-A01RM, 31100-P0A-A03, 31100-P0A-AA010, 31100-P0B-A01, 31100-P0B-A01RM, 31100-P0B-AA010, 31100-P12-A01, 31100-P12-A01RM, 31100-P12-A02, 31100-P12-A02RM, 31100-P13-0133, 31100-P13-013RM, 31100-P14-A01, 31100-P14-A02, 31100-P14-A02, 31100-P14-A02RM, 31100-P14-A02RM, 31100-P1R-A011M, 31100-P30-033, 31100-P30-033RM, 31100-P30-Y0031, 31100-PM5-A01, 31100-PM5-A01RM, 31100-PM8-A01, 31100-PM8-A01RM, 31100-PM8-A02, 31100-PM8-A03, 31100-PM8-A03RM, 31100-PT2-003, 31100-PT3-A51, 31100-PT3-A511M, 31100-PT3-A51RM, 31100-PT3-A52, 31100-PT3-A52RM, 31100-PV0-013, 31100-PV0-0130, CHA50, CHA57, CIP20, CJP16, CJP16, CJP20, CJP29, CJP61, CJP76, CJP78, CJQ21, CJQ21, CJS49, CJS50, CJS51, CJS70, CJS85, CJS86, CJS88; Valeo 437637, 437680
