DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT B-CIRCUIT
- SYSTEM VOLTAGE 12
- TERMINALS LIN1
- VOLT SET 14.2
- MFR: BOSCH
- FEATURE 1:100% New
- FEATURE 2:LIN - Dummy Plug
- NOTE 1:LIN
- SPECS FOR:Bosch IR/IF
- SPECS:12 Volt, B-Circuit, 14.2 Vset
- TYPE Bearing
- ID 17
- IND REF NUM 6003
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 10
- TYPE Slip Ring
- ID 7
- LENGTH RING 1 7.9
- LENGTH RING 2 7.9
- LENGTH RINGS 17.7
- OD SLIP RING 15.4
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

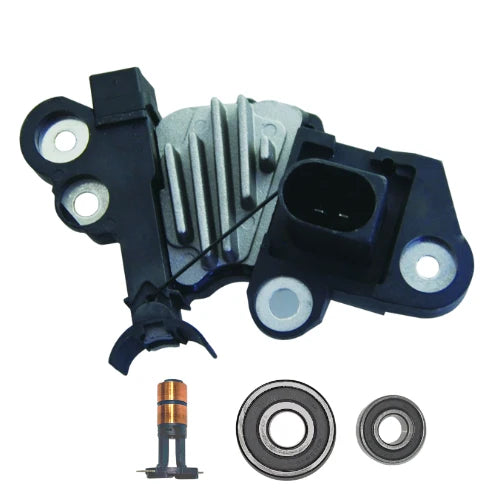

Regulator/Brushes/Bearings/Slip Ring
For Audi Volkswagen and more.
Audi
- A6 Quattro V6 3.0L 2009
- A6 V6 3.2L 2010-2011
- A6 Quattro V6 3.0L 2010-2011
Volkswagen
- CC V6 3.6L 2012-2016
Interchange #
Regulator
IB6139
Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W
Slip Ring, Rotor
28-91852
Lester
11478, 11495, 20017, 20017A, 20138, 20138, 20330, 20331, 20331
Replaces
Audi, Volkswagen 03G 903 097, 059 903 803 F, Bosch F 00M 346 044, F 00M 346 092, F 00M 346 139
USED ON
Audi (2009-2011) ** Volkswagen (2012-2016)
UNIT NUMBERS
Audi, Volkswagen 03G-903-016L, 03G-903-016LX, 03G-903-016N, 03G-903-016NX, 03L-903-023D, 03L-903-023DX, 059 903 016 P, 059 903 016 PX, 059-903-016P, 059-903-016PX, 059-903-018-K, 059-903-018E, 059-903-018EX, 059-903-018K, 06E 903 018 H, 06E 903 018 HX, 06E-903-016T, 06E-903-016TX, 079-903-015D; Bosch 0 121 715 030, 0 121 715 041, 0 121 715 049, 0 121 715 050, 0 121 715 051, 0 121 715 071, 0 121 715 076, 0 121 715 077, 0 121 715 078, 0 121 715 080, 0 121 715 149, 0 121 715 150, 0 121 715 151, 0 121 715 171, 0 121 715 176, 0 121 715 177, 0 121 715 178, 0 121 715 180; Marelli 063537151710
