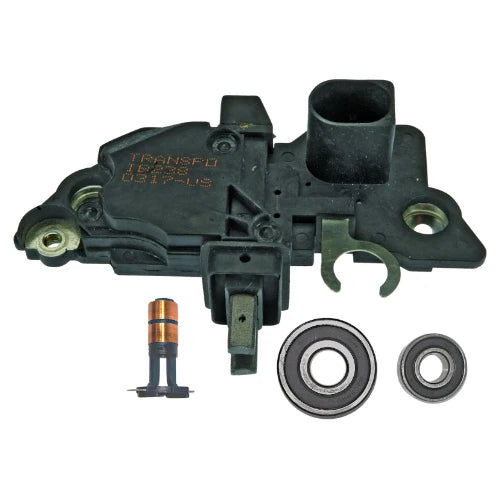

For New Alternator kit 6 Audi Volkswagen Regulator Brushes Bearings Slip Ring

For New Alternator kit 6 Audi Volkswagen Regulator Brushes Bearings Slip Ring

$33.95 USD
$0.00 USD $33.95 USD
Sale Sold out
View full details


DESCRIPTION

  Specifications and Features:

  • TYPE                   Regulator
  • CIRCUIT A-CIRCUIT
  • LRC         W/ LRC
  • SYSTEM VOLTAGE 12
  • TEMPERATURE COMPENSATION Y
  • TERMINALS L, DFM
  • VOLT SET         14.5
  • MFR:BOSCH
  • FEATURE 1:100% New Transpo
  • FEATURE 2:Soft start
  • FEATURE 3:Temperature compensation
  • NOTE 1:Active lamp function - with output.
  • SPECS FOR:Bosch IR/IF Alternators
  • SPECS:12 Volt, A-Circuit, L-FR Terminals, 14.5 Vset, w/ LRC
  • TYPE          Bearing
  • ID 17
  • IND REF NUM 6003
  • OD 35
  • SIDE-1 FEATURE RUBBER SEAL
  • SIDE-2 FEATURE RUBBER SEAL
  • WIDTH 10
  • TYPE          Slip Ring
  • ID 7
  • LENGTH RING 1 7.9
  • LENGTH RING 2 7.9
  • LENGTH RINGS 17.7
  • OD SLIP RING 15.4

  Compatible Vehicles:
  *Please check the year, make, model and engine size. Thank you.


100% NEW REPLACEMENT
Regulator/Brushes/Bearings/Slip Ring
For Audi Volkswagen and more.
    Audi
  • A4 L4 1.8L 1999-2001
  • A4 V6 2.8L 1999-2001
  • A4 Quattro L4 1.8L 2000-2001
  • A4 Quattro V6 2.8L 1999-2001
  • A6 Quattro V6 2.7L 2002-2004

    Volkswagen
  • Passat L4 1.8L 1999-2005
  • Passat L4 2.0L 2004-2005
  • Passat V6 2.8L 1999-2005



Interchange #
Regulator
IB238

Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W

Slip Ring, Rotor
28-91852

Lester
11209, 11210, 11214, 13921, 13921, 13921, 13922, 13951, 13951, 20086, 22971, 23242, 23243, 23244

Replaces
Audi, Volkswagen 038-903-803-F, 038-903-803F, Bosch F 00M 145 234, F 00M 145 237, F 00M 145 238, F 00M 145 354, F 00M 145 355, F 00M A45 208, F 00M A45 209, Fiat 9944583, 9949583



USED ON
Audi (1999-2004) ** Volkswagen (1999-2005)


UNIT NUMBERS
Audi, Volkswagen 017-903-016C, 028-903-029A, 028-903-029B, 028-903-029S, 028-903-029SX, 038-903-018E, 038-903-018EX, 038-903-018F, 038-903-018FX, 038903018EX, 046-903-015Q, 047-903-015Q, 047-903-015QX, 047-903-015R, 047-903-027, 06B-903-016, 06B-903-016A, 06B-903-016B, 06B-903-016F, 071-903-016C, 071-903-016D, 071-903-016E, 078-903-016E, 078-903-016F, 078-903-018F, 078-903-018FX; Bosch 0 124 315 010, 0 124 315 011, 0 124 315 014, 0 124 325 017, 0 124 325 018, 0 124 325 019, 0 124 325 020, 0 124 325 036, 0 124 325 037, 0 124 325 049, 0 124 515 024, 0 124 515 025, 0 124 515 026, 0 124 515 027, 0 124 515 028, 0 124 515 030, 0 124 515 034, 0 124 515 058; Fiat 5040099780; Magneton 9-517-215, 9-517-251; Marelli 063533250180, 063533250490; Skoda 046-903-015Q, 047-903-015Q
