DESCRIPTION
Specifications and Features:
- TYPE Regulator
- MFR:VALEO
- FEATURE 1:100% New Transpo
- FEATURE 2:BSS (COM) Regulator
- FEATURE 3:COM ID Code: 49
- FEATURE 4:B- Circuit, Voltage Setpoint Range is from 10.7V to 16.0V
- FEATURE 5:Computer Controlled BSS Regulator
- FEATURE 6:Regulation Mode is Controlled by On-Board Computer
- FEATURE 7:Stator Activated
- NOTE 1:Companion Rectifier Full Assy. MER5209
- NOTE 2:Companion Rectifier Positive Assy. MER530
- NOTE 3:Terminal Identification: COM (BSS) Terminals
- SPECS FOR:Valeo IR/IF Alternators
- SPECS:12 Volt, B-Circuit, 14.6 Vset
- TYPE Brushes
- LENGTH 15.4
- THICKNESS 6.35
- VOLT 12
- WIDTH 4.6
- TYPE Bearing
- ID 15
- IND REF NUM 6202
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 11
- TYPE Slip Ring
- ID 8.8
- LENGTH OA 48.30
- OD SLIP RING 14.0
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

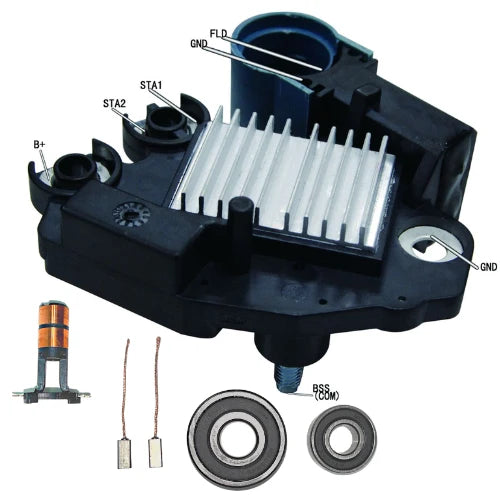

Regulator/Brushes/Bearings/Slip Ring
For BMW and more.
BMW
- 323i L6 2.5L 2006
- 325i L6 2.5L 1997
- 325i L6 2.5L 2007-2009
- 325i L6 3.0L 2006
- 325xi L6 3.0L 2006
- 330i L6 3.0L 2007
- 330i L6 3.0L 2006
- 525i L6 2.5L 2008
- 525i L6 2.5L 2006-2007
- 525i L6 3.0L 2006-2007
- 525xi L6 3.0L 2006-2007
- 530i L6 3.0L 2006-2007
- 530xi L6 3.0L 2006-2007
- 550i V8 4.8L 2007-2010
- 650i V8 4.8L 2007-2010
- 750i V8 4.8L 2007-2008
- 750Li V8 4.8L 2007-2008
- Z4 L6 2.5L 2008
- Z4 L6 3.0L 2008
- Z4 L6 3.2L 2008
Interchange #
Regulator
M543
Brushes
PX60
Bearing, Ball
6-202-2, 6-202-4, 6-202-4E, 6-202-4N, 6-202-4W
Slip Ring, Rotor
28-94867
Lester
11260, 11358
Replaces
BMW 7547082-02, Valeo 593984
USED ON
BMW (1997-2010) ** BMW - China (2005-2008) ** BMW - Europe (2003-2011)
UNIT NUMBERS
BMW 12-31-7-521-178, 12-31-7-525-376, 12-31-7-542-935; Valeo TG17C015, TG17C035
