For New Alternator kit 6 Buick Chevy GMC Isuzu Regulator Brushes Bearings Slip

For New Alternator kit 6 Buick Chevy GMC Isuzu Regulator Brushes Bearings Slip

$41.98 USD
$0.00 USD $41.98 USD
Sale Sold out
View full details


DESCRIPTION

  Specifications and Features:

  • TYPE          Regulator
  • ACTIVATION LAMP ACTIVATED
  • CIRCUIT B-CIRCUIT

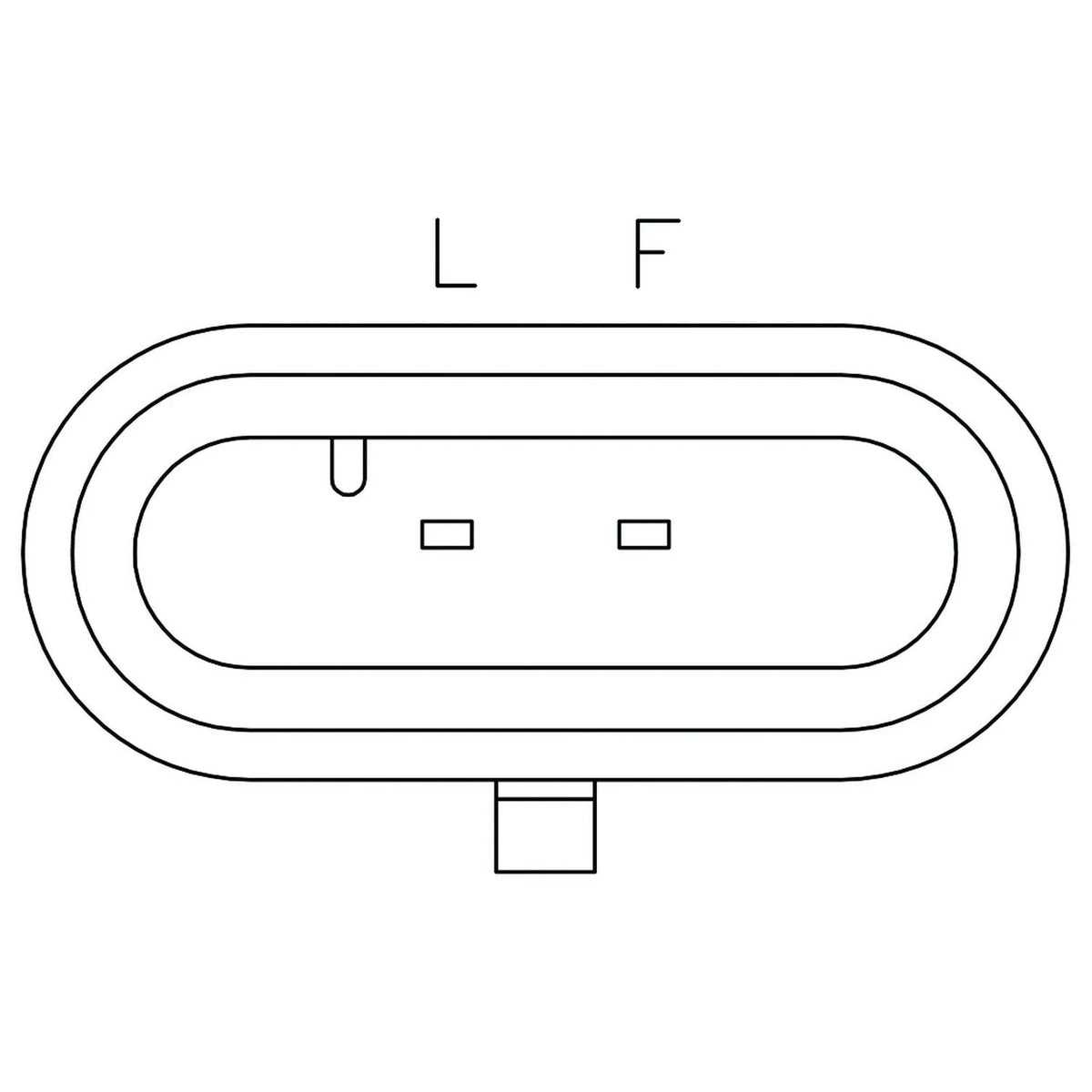

  • PLUG CODE 323
  • SYSTEM VOLTAGE 12
  • TERMINALS FR, L
  • VOLT SET 14.6
  • MFR:VALEO
  • FEATURE 1:100% New Transpo
  • FEATURE 2:Lamp activated
  • NOTE 1:With FR Resistor
  • SPECS FOR:Valeo IR/IF Alternators
  • SPECS:12 Volt, B-Circuit, F-L Terminals, 14.6 Vset
  • TYPE          Brushes
  • LENGTH 15.4
  • THICKNESS 6.35
  • VOLT 12
  • WIDTH 4.6
  • TYPE          Bearing
  • ID 15
  • IND REF NUM 6202
  • OD 35
  • SIDE-1 FEATURE RUBBER SEAL
  • SIDE-2 FEATURE RUBBER SEAL
  • WIDTH 11
  • TYPE          Slip Ring
  • ID 8.8
  • LENGTH OA 48.30
  • OD SLIP RING 14.0

  Compatible Vehicles:
  *Please check the year, make, model and engine size. Thank you.


100% NEW REPLACEMENT

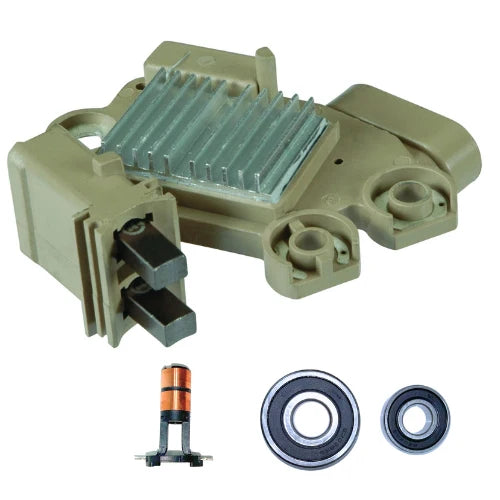

Regulator/Brushes/Bearings/Slip Ring
For Buick Chevrolet GMC Isuzu Hummer Oldsmobile Pontiac Saturn and more.
    Buick
  • Rendezvous V6 3.4L 2002-2005
  • Rendezvous V6 3.5L 2006-2007
  • Rendezvous V6 3.6L 2004-2006

    Chevrolet
  • Cavalier L4 2.2L 2002-2005
  • Classic L4 2.2L 2004-2005
  • Cobalt L4 2.0L 2008-2010
  • Colorado L4 2.8L 2004-2006
  • Colorado L5 3.5L 2004-2006
  • Equinox V6 3.4L 2005-2006
  • HHR L4 2.0L 2008-2010
  • Malibu L4 2.2L 2004-2008
  • Malibu V6 3.5L 2004-2009

    GMC
  • Canyon L4 2.8L 2004-2006
  • Canyon L5 3.5L 2004-2006

    Isuzu
  • i-280 L4 2.8L 2006
  • i-350 L5 3.5L 2006

    Hummer
  • H3 L5 3.5L 2006

    Oldsmobile
  • Alero L4 2.2L 2002-2004

    Pontiac
  • Aztek V6 3.4L 2001-2005
  • G6 L4 2.4L 2006-2007
  • G6 V6 3.5L 2005
  • G6 V6 3.6L 2007
  • Grand Am L4 2.2L 2002-2005
  • Solstice L4 2.0L 2007-2009
  • Solstice L4 2.4L 2006-2007
  • Sunfire L4 2.2L 2002-2005
  • Torrent V6 3.4L 2006

    Saturn
  • Aura V6 3.6L 2007
  • Ion L4 2.2L 2003-2007
  • Ion L4 2.4L 2006-2007
  • Sky L4 2.0L 2007-2010
  • Sky L4 2.4L 2007
  • Vue L4 2.2L 2002-2007
  • Vue V6 3.0L 2002-2003



Interchange #
Regulator
M524, 107067, 137054, 35-9429, VR-PR2765

Brushes
PX60

Bearing, Ball
6-202-2, 6-202-4, 6-202-4E, 6-202-4N, 6-202-4W

Slip Ring, Rotor
28-94867

Lester
11022, 11047, 11069, 11072, 11144, 11144, 11145, 11147, 11263, 11264, 11327, 11356, 11357, 13865, 13865, 13865, 13866, 13866, 13938, 13944, 13944, 13944, 13944, 13944, 13944


Replaces
Original Reference Number 2650655-02926798, Valeo 2542765, 2542765C, 2548154E, 2601726, 2650490, 2650655, 702157



USED ON
Buick (2002-2007) ** Chevrolet (2002-2009) ** GMC (2004-2006) ** Hummer (2006) ** Isuzu (2006-2006) ** Oldsmobile (2002-2004) ** Pontiac (2001-2009) ** Saturn (2002-2010)


UNIT NUMBERS
AM General 15104219; Delco 10354847; GM 10300558, 10300559, 10317730, 10317731, 10320213, 10354847, 10356804, 10372313, 10395210, 10396843, 10426394, 10426395, 15104219A, 15270802, 15279852, 15283754, 15283755, 15283756, 15287324, 15781434, 15789921, 15794596, 15794597, 15826975, 15831639, 15875992, 15875999, 15880834, 15911824, 15947363, 20833569, 20862828, 20862829, 22611790, 22633656, 22633659, 22660217, 22683070, 22683071, 22710858, 25866023, 25869520, 25948387, 25948388, 25967329, 97241516; Isuzu 8972415160; Original Reference Number 102558431, 131022024633, 151117135919, 160309045133, 160330092650, 170508072749, 2650133SPA, 2650135C, 2650345, GMX020, SG12S084SP, TG11S053SP, TG13S026SP, TG15S079SP, TG15S079SPO; Valeo 2542454A, 2542454A, 2609962, 2650133A, 2650238, 2650345-D, 2650400, 2650400SP, 2650424SP, 2650579A, 420418, 849013, FG12S018, FG12S019, FG12S025, FG12S026, SG10B018, SG10S028, SG10S030, SG10S034, SG10S036, SG10S038, SG10S039, SG10S042, SG10S044, SG10S049, SG10S050, SG10S051, SG10S051SP, SG12B041, SG12S057, SG12S070, SG12S072, SG12S075, SG12S083, SG12S084, SG12S104, SG12S120, TG10S015, TG10S019, TG11S010, TG11S011, TG11S050, TG11S051, TG11S053, TG12C044, TG13S011, TG13S013, TG13S016, TG13S019, TG13S024, TG13S026, TG13S027, TG13S033, TG13S034, TG14C114, TG15C086, TG15C114, TG15C158, TG15C159, TG15S039, TG15S079
