DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- PLUG CODE 280
- SYSTEM VOLTAGE 12
- TERMINALS S, IG, L
- VOLT SET 14.5
- MFR:DENSO
- DIM 1:57.5mm Mtg. Length
- FEATURE 1:100% New Transpo
- NOTE 1:Active lamp function - with output.
- NOTE 2:For self-exciting version use IN250SE.
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset
- TYPE Brush Holder
- DIST MTG HOLES 26.1
- HEIGHT 25.93
- LENGTH OA 22.66
- MOUNTING HOLE SIZE 4.3
- VOLT 12
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing
- ID 15
- IND REF NUM W6002
- OD 32
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 11
- TYPE Slip Ring
- ID 8.85
- LENGTH RING 1 9.55
- LENGTH RING 2 9.7
- LENGTH RINGS 20.7
- OD SLIP RING 14.5
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

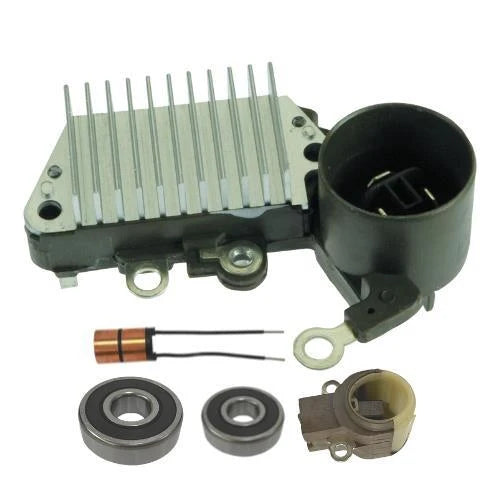

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Daihatsu Toyota and more.
Daihatsu
- Charade L3 1.0L 1988-1992
- Charade L4 1.3L 1989-1992
Toyota
- Tercel L4 1.5L 1987-1990
Interchange #
Regulator
IN250, IN250SE, IN250SE189
Brush Holder Assy
39-8200
Brushes
38-8201
Bearing, Ball
6-3102-4, 6-3102-4W
Slip Ring, Rotor
28-82853
Lester
13239, 13390, 13425, 14843, 14843, 22276, 22277
Replaces
Daihatsu Motor Co 27700-87704-000, Denso 126000-0550, 126000-0980, 126000-1550, 126000-1570, Toyota 27700-10050, 27700-10080, 27700-66010
USED ON
Daihatsu (1988-1992) ** Toyota (1987-1990) **
UNIT NUMBERS
Daihatsu Motor Co 27060-87706-000, 27060-87710-000; Denso 100211-1440, 100211-1560, 100211-1620, 100211-4160, 100211-4170, 100211-4171, 100211-4290, 100211-4320, 100211-4350, 100211-4351, 100211-4410, 100211-6810, 100211-6860, 100211-6870; Toyota 27040-10010, 27060-10030, 27060-10050, 27060-10051, 27060-10070, 27060-10071, 27060-10080, 27060-10100, 27060-10100, 27060-11080, 27060-58010, 27060-58070, 27060-72080, 27060-72081, 27060-72111, 27060-72140, 27060-72141
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 1992 | Daihatsu | Charade | SE Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1992 | Daihatsu | Charade | SE Hatchback 2-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1992 | Daihatsu | Charade | SE Sedan 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1992 | Daihatsu | Charade | SE Sedan 4-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1992 | Daihatsu | Charade | SX Sedan 4-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1991 | Daihatsu | Charade | SE Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1991 | Daihatsu | Charade | SE Hatchback 2-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1991 | Daihatsu | Charade | SE Sedan 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1991 | Daihatsu | Charade | SE Sedan 4-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1991 | Daihatsu | Charade | SX Sedan 4-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1990 | Daihatsu | Charade | SE Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1990 | Daihatsu | Charade | SE Hatchback 2-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1990 | Daihatsu | Charade | SE Sedan 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1990 | Daihatsu | Charade | SE Sedan 4-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1990 | Daihatsu | Charade | SX Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1990 | Daihatsu | Charade | SX Hatchback 2-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1990 | Daihatsu | Charade | SX Sedan 4-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1990 | Daihatsu | Charade | SX Sedan 4-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1989 | Daihatsu | Charade | CES Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1989 | Daihatsu | Charade | CLS Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1989 | Daihatsu | Charade | CLS Hatchback 2-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1989 | Daihatsu | Charade | CLX Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1989 | Daihatsu | Charade | CLX Hatchback 2-Door | 1.3L 1295CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Daihatsu | Charade | CLS Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1988 | Daihatsu | Charade | CLX Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1988 | Daihatsu | Charade | CSX Hatchback 2-Door | 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | DLX Wagon 4-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | DLX Wagon 4-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | DX Hatchback 2-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | DX Hatchback 4-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | DX Sedan 2-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | EZ Hatchback 2-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | SR5 Wagon 4-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | STD Hatchback 2-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | STD Hatchback 4-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1988 | Toyota | Tercel | STD Sedan 2-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DLX Hatchback 2-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DLX Hatchback 2-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DLX Hatchback 4-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DLX Hatchback 4-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DLX Sedan 2-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DLX Sedan 2-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DLX Wagon 4-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DLX Wagon 4-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DX Sedan 2-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DX Sedan 3-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | DX Sedan 5-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | SR5 Wagon 4-Door | 1.5L 1452CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | STD Hatchback 2-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | STD Hatchback 4-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
| 1987 | Toyota | Tercel | STD Sedan 2-Door | 1.5L 1456CC l4 GAS SOHC Naturally Aspirated |
