DESCRIPTION
Specifications and Features:
- TYPE Regulator
- ACTIVATION LIN or stator
- CIRCUIT B-CIRCUIT
- LRC Y
- SOFT START Y
- SYSTEM VOLTAGE 12
- VOLT SET 10.6 to 16.0
- MFR:BOSCH
- FEATURE 1:100% New Transpo
- FEATURE 2:LIN (COM) Regulator
- FEATURE 3:COM ID Code: 32
- FEATURE 4:LIN or Stator Activated
- FEATURE 5:LIN Regulator
- FEATURE 6:With Field Short Circuit Protection
- FEATURE 7:With Soft Start and LRC Function
- NOTE 1:Companion Rectifier IBR257

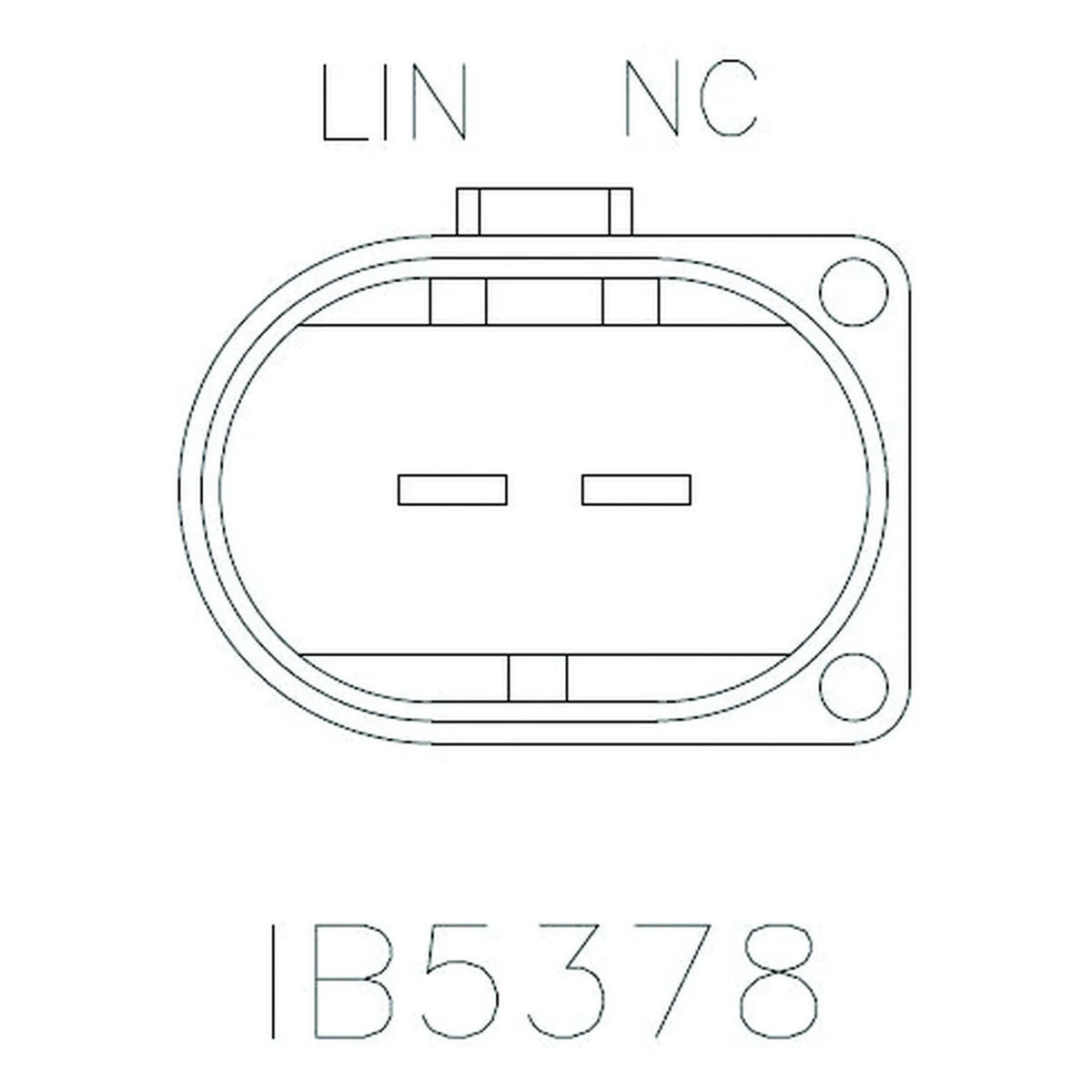

- NOTE 2:Terminal Identification: Lin
- SPECS FOR:Bosch IR/IF Alternator
- SPECS:12 Volt, B-Circuit, Volt Set range is from 10.6V to 16.0V
- TYPE Bearing
- ID 17
- IND REF NUM 6003
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 10
- TYPE Slip Ring
- ID 7
- LENGTH RING 1 7.9
- LENGTH RING 2 7.9
- LENGTH RINGS 17.7
- OD SLIP RING 15.4
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

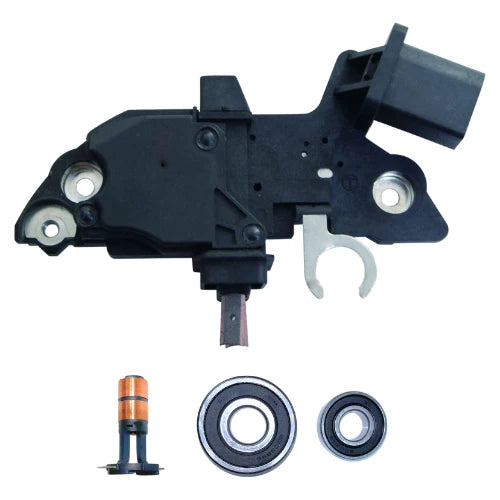

Regulator/Brushes/Bearings/Slip Ring
For Dodge Freightliner Mercedes-Benz and more.
Dodge
- Sprinter 2500 V6 3.5L 2007-2008
- Sprinter 3500 V6 3.5L 2007-2008
Freightliner
- Sprinter 2500 V6 3.5L 2007-2008
- Sprinter 3500 V6 3.5L 2007-2008
Mercedes-Benz
- E350 V6 3.5L 2006
- ML350 V6 3.5L 2006
- R350 V6 3.5L 2006
Interchange #
Regulator
IB5378
Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W
Slip Ring, Rotor
28-91852
Lester
11217
Replaces
Bosch F 00M 144 158, F 00M 145 310, F 00M 145 378, F 00M 145 852, F 00M 145 886, Mercedes-Benz 003 154 44 06, 003 154 62 06, 003-154-75-06, 004-154-01-06, A 003 154 44 06, A 003 154 62 06, A-003-154-75-06, A-004-154-01-06
USED ON
Dodge (2007-2008) ** Freightliner (2007-2008) ** Mercedes-Benz (2006)
UNIT NUMBERS
Bosch 0 124 625 023, 0 124 625 208; Chrysler 68011841AA, 68011841AB; Mercedes-Benz 272 154 01 02 80, 272-154-01-02, A 272 154 01 02 80, A272-154-01-02
