DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT B-CIRCUIT
- SYSTEM VOLTAGE 12
- TERMINALS: LIN - Dummy
- MFR: BOSCH
- FEATURE 1:100% New
- FEATURE 2:LIN (COM) Regulator
- FEATURE 3:COM ID Code: 48
- FEATURE 4: LIN or Stator Activated
- FEATURE 5:Soft Start and LRC function
- FEATURE 6:Field Short Circuit Protection
- FEATURE 7:No Secondary Voltage
- SPECS FOR:Bosch IR/IF Alternator
- SPECS: 12 Volt, B-Circuit, High Side Drive Regulator, 14.40 V set
- TYPE Bearing
- ID 17
- IND REF NUM 6003
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 10
- TYPE Slip Ring
- ID 7
- LENGTH RING 1 7.9
- LENGTH RING 2 7.9
- LENGTH RINGS 17.7
- OD SLIP RING 15.4
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

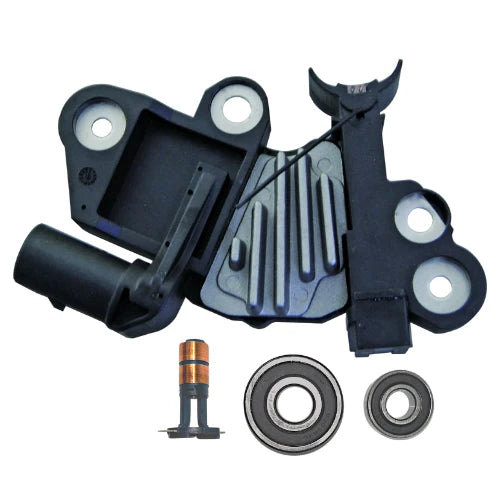

Regulator/Brushes/Bearings/Slip Ring
For Dodge, Freightliner, Mercedes-Benz and more.
Dodge
- Sprinter 2500 V6 3.5L 2007-2008
- Sprinter 3500 V6 3.5L 2007-2008
Freightliner
- Sprinter 2500 V6 3.5L 2007-2008
- Sprinter 3500 V6 3.5L 2007-2008
Mercedes-Benz
- CL550 V8 5.5L 2007-2010
- CL600 V12 5.5L 2007-2014
- CL63 AMG V8 6.3L 2008-2010
- CL65 AMG V12 6.0L 2008-2014
- E350 V6 3.0L 2011-2013
- R350 V6 3.0L 2010-2012
- S350 V6 3.0L 2012-2013
- S550 V8 5.5L 2007-2011
- S600 V12 5.5L 2007-2013
- S63 AMG V8 6.3L 2008-2010
- S65 AMG V12 6.0L 2007-2013
- GL320 V6 3.0L 2007-2009
- GL350 V6 3.0L 2010-2012
- ML320 V6 3.0L 2007
- ML320 V6 3.0L 2009
- ML350 V6 3.0L 2010-2011
Interchange #
Regulator
IB6020
Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W
Slip Ring, Rotor
28-91852
Lester
11304, 11305, 11305, 11308, 11310, 11444, 11445, 20758
Replaces
Bosch F 00M 346 006, F 00M 346 020, F 00M 346 036, F 00M 346 048, F 00M 346 081, F 00M 349 831, Original Reference Number WG1776028
USED ON
Dodge (2007-2008) ** Freightliner (2007-2008) ** Mercedes-Benz (2007-2014)
UNIT NUMBERS
Bosch 0 120 000 025, 0 121 813 001, 0 121 813 002, 0 121 813 003, 0 121 813 005, 0 121 813 006, 0 121 813 014, 0 121 813 020, 0 121 813 023, 0 121 813 101, 0 121 813 102, 0 121 813 103, 0 121 813 105, 0 121 813 106, 0 121 813 114, 0 121 813 120, 0 121 813 123; CE Niehoff 4048; Chrysler 68011843AA, 68011843AC, 68011843AD; Mercedes-Benz 000-906-02-00, 013 154 99 02, 013-154-05-02, 013-154-06-02, 013-154-09-02, 013-154-55-02, 013-154-99-02, 014-154-13-02, 629-150-04-50, A 013 154 99 02, A000-906-02-00, A013-154-09-02, A0131540502, A0131540602, A0131545502, A014-154-13-02, A629-150-04-50; Original Reference Number 68011 843AC
