DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- LRC 7 SECOND
- PLUG CODE 338
- SYSTEM VOLTAGE 12
- TERMINALS I, FR, A
- VOLT SET 14.4
- MFR:FORD
- FEATURE 1:100% New Transpo
- NOTE 1:Regulator shutdown with loss of sense (A) or light (I) connection.
- NOTE 2:FR provides feedback to vehicle PCM.
- NOTE 3:*F602 also replaces Ford OE white body regulator w/ gray cover
- SPECS FOR:Ford 6G Series IR/IF Alternators
- SPECS:12 Volt, A-Circuit, I-FR-A Terminals, 14.4 Vset, 7 sec. LRC, White w/ White Cover*
- TYPE Brushes
- CONTACT SURFACE FLAT
- INSULATED LEAD NO
- LEAD ATTACH LOCATION TOP
- LENGTH 22
- LENGTH LEAD 73
- THICK 5
- WIDTH 8
- TYPE Bearing
- ID 10
- IND REF NUM B10-50D
- OD 27
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 11
- TYPE Slip Ring
- ID 13.4
- LENGTH LEADS 30
- LENGTH RING 1 7.8
- LENGTH RING 2 9.9
- LENGTH RINGS 18.9
- OD SLIP RING 27
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

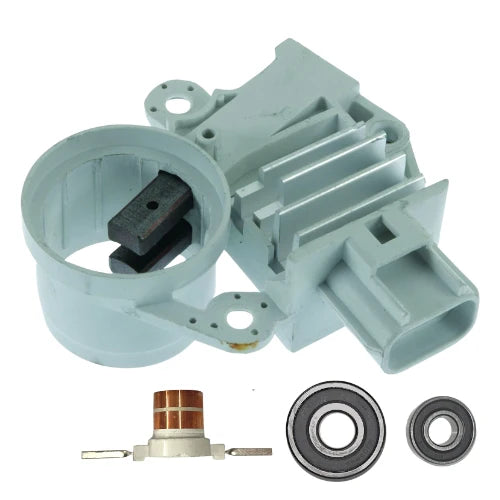

Regulator/Brushes/Bearings/Slip Ring
For Ford Mercury and more.
Ford
- Contour L4 2.0L 1998-2000
Mercury
- Cougar L4 2.0L 1999-2002
- Mystique L4 2.0L 1998-2000
Interchange #
Regulator
F602
Bearing, Ball
10-1051-4, 10-1051-4E, 10-1051-4W
Slip Ring, Rotor
28-2859, 28-2859-10
Replaces
Ford XS7U-10C359-AC, Visteon ALT-C-158
USED ON
Ford (1998-1998) ** Mercury (1998-1998)
UNIT NUMBERS
Ford 1L5U-10300-AA, 1L5Z-10346-AA, 2F1U-10300-CA, 4U2Z-10V346-CWRM, 4U2Z-10V346-CWRM, 98BB-10300-CC, F8RZ-10346-CC, F8RZ-10346-CCRM, FRZA-10300-AB, WR2A-10300-AC, XS8Z-10346-BB, XS8Z-10346-BBRM, XS8Z-10V346-BCRM, XS91-10300-BB, XS91-10300-BC; Ford Engineering 1L5U-AA, 2F1U-CA, 98BB-CC, FRZA-AB, WR2A-AC, XS91-BB, XS91-BC; Original Reference Number ER-10300-A; Visteon CL, CR, DB
