DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- ID BRUSH RING 26
- PLUG CODE 300
- SYSTEM VOLTAGE 12
- TERMINALS S, L
- VOLT SET 14.5
- MFR:MANDO / MITSUBISHI
- DIM 1:26mm ID Slip Ring Cover
- FEATURE 1:100% New Transpo
- NOTE 1:For heavy duty version use IM217HD.
- SPECS FOR:Mando, Mitsubishi IR/IF Alternators
- SPECS:12 Volt, A-Circuit, S-L Terminals, 14.5 Vset
- TYPE Bearing
- ID 8
- IND REF NUM SC8A05LHI
- OD 23
- OUTER RACE FEATURE 2-TEFLON RINGS
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 14
- TYPE Slip Ring
- ID 12.6
- LENGTH RING 1 7.5
- LENGTH RING 2 7.5
- LENGTH RINGS 17
- OD SLIP RING 22.6
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

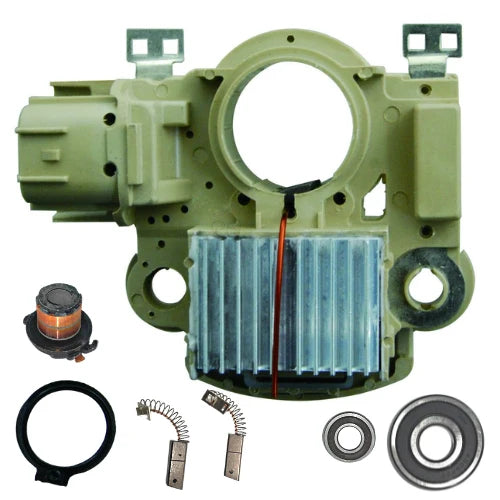

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
Honda
- Civic L4 1.8L 2006-2011
Interchange #
Regulator
IM558
Bearing, Ball
10-800-4, 10-800-4E, 10-800-4W
Slip Ring, Rotor
28-83852
Replaces
Honda 31150-RNA-A01
USED ON
Honda (2006-2011)
UNIT NUMBERS
Honda 31100-RNA-A01, 31100-RNA-A012-M2, 31100-RNA-A01RM, 31100-RNE-A01, 31100-RNE-A010M2, AHGA67, AHGA75; Mitsubishi A002TC1391, A002TC1391ZC, A002TC1391ZE, A002TC1591, A002TC1591ZC, A002TC1591ZCKD; Original Reference Number 89212338
