DESCRIPTION
Specifications and Features:
- TYPE Regulator
- CIRCUIT A-CIRCUIT
- LRC 3 SECOND
- SYSTEM VOLTAGE 12

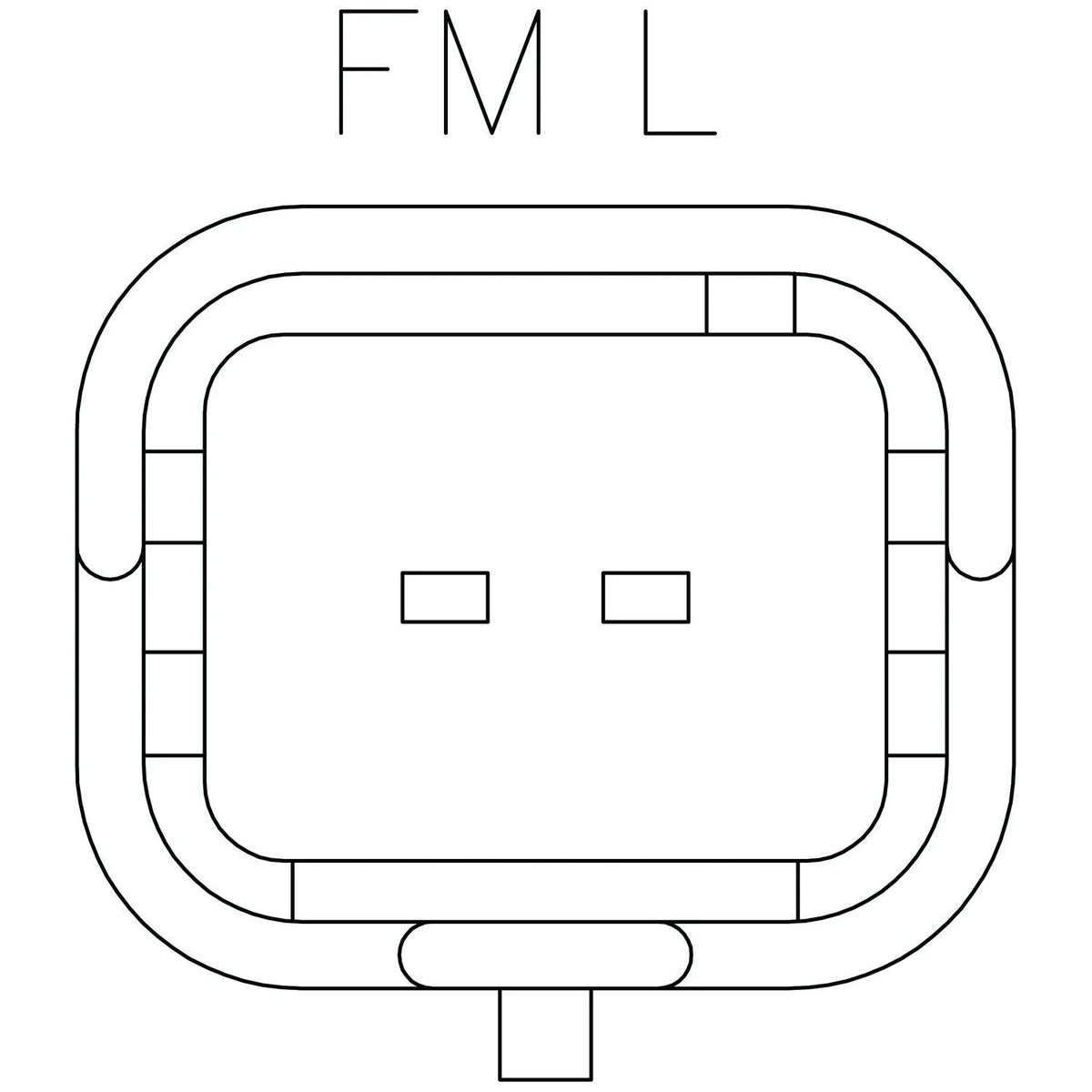

- TERMINALS L, DFM
- VOLT SET 14.35
- MFR: DENSO
- FEATURE 1:100% New Transpo Heavy Duty ASVR Design
- FEATURE 2:Welded construction - no solder joints for high-temperature reliability & increased field life
- FEATURE 3:Short-circuit protection
- FEATURE 4:8.5A (25C) field rating
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, A-Circuit, L-DFM Terminals, 14.35 Vset, w/ LRC
- TYPE Brush Holder
- HEIGHT 23.7
- LENGTH OA 43.3
- TYPE Brushes
- CONTACT SURFACE CONCAVE
- INSULATED LEAD NO
- LEAD ATTACH LOCATION SIDE
- LENGTH 15
- LENGTH LEAD 48
- TERMINATION TYPE NONE
- THICK 4.8
- VOLT 12
- WIDTH 7
- TYPE Bearing
- ID 15
- IND REF NUM 279
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 13
- TYPE Slip Ring
- ID 5.8
- LENGTH LEADS 11
- LENGTH OA 46.5
- LENGTH RING 1 8.2
- LENGTH RING 2 8.2
- OD SLIP RING 14.3
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

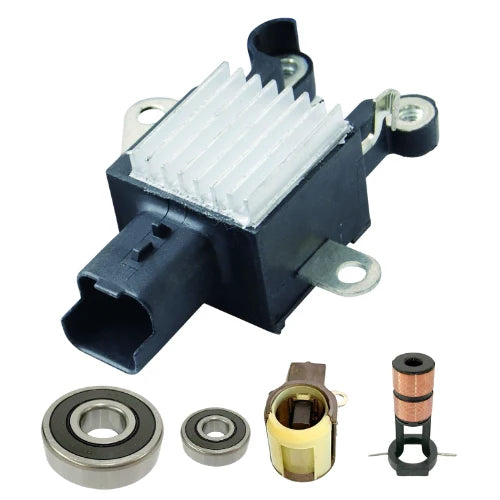

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Jeep and more.
Jeep
- Liberty L4 2.8L 2005-2006
Interchange #
Regulator
IN317
Brush Holder Assy
39-8203-3
Brushes
38-8201
Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W
Slip Ring, Rotor
28-82854
USED ON
Jeep (2005-2006)
UNIT NUMBERS
Chrysler 56044672AA, 56044672AB; Denso 104210-2780, 104210-3170, 104210-3240, 104210-4240, 104210-4241, 104210-5020; Fiat 50500728, 51734825; MAN MAN7015; Marelli MAN7015; PSA Peugeot Citroen 5702 A6, 5702 A7, 9640623580, 9644529680, 9650582080
