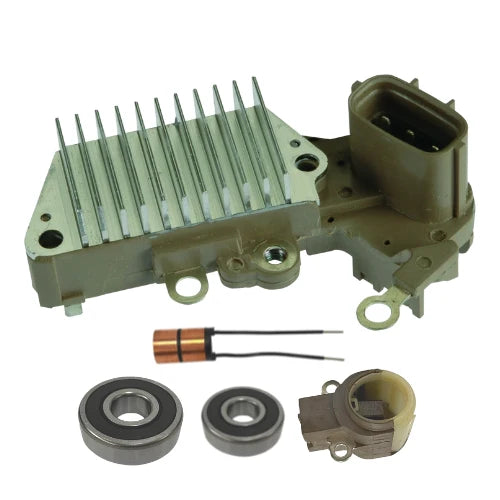

For New Alternator kit 6 Lexus Toyota Regulator Brush Holder Bearings Slip Ring

For New Alternator kit 6 Lexus Toyota Regulator Brush Holder Bearings Slip Ring

$37.69 USD
$0.00 USD $37.69 USD
Sale Sold out
View full details


DESCRIPTION

  Specifications and Features:

  • TYPE           Regulator
  • CIRCUIT A-CIRCUIT
  • LRC 9 SECOND
  • PLUG CODE 312
  • SYSTEM VOLTAGE 12
  • TERMINALS S, IG, L
  • VOLT SET 14.6
  • MFR:DENSO
  • DIM 1:63.5mm Mtg. Length
  • FEATURE 1:100% New Transpo
  • FEATURE 2:Circuit protected against shorted field, shorted lamp, load dump, battery disconnect
  • NOTE 1:Active lamp function - with output.
  • NOTE 2:*Replaces Denso 126000-1520, -1521, -1730, -2250 w/o LRC
  • SPECS FOR:Denso IR/IF Alternators
  • SPECS:12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset, 5 sec. LRC
  • TYPE          Brush Holder
  • HEIGHT 23.7
  • DIST MTG HOLES 26.1
  • HEIGHT 25.93
  • LENGTH OA 22.66
  • MOUNTING HOLE SIZE 4.3
  • VOLT 12
  • TYPE          Brushes
  • CONTACT SURFACE CONCAVE
  • INSULATED LEAD NO
  • LEAD ATTACH LOCATION SIDE
  • LENGTH 15
  • LENGTH LEAD 48
  • TERMINATION TYPE NONE
  • THICK 4.8
  • VOLT 12
  • WIDTH 7
  • TYPE          Bearing
  • ID 15
  • IND REF NUM 336
  • OD 46
  • SIDE-1 FEATURE RUBBER SEAL
  • SIDE-2 FEATURE RUBBER SEAL
  • WIDTH 14
  • TYPE          Slip Ring
  • ID 8.85
  • LENGTH RING 1 9.55
  • LENGTH RING 2 9.7
  • LENGTH RINGS 20.7
  • OD SLIP RING 14.5

  Compatible Vehicles:
  *Please check the year, make, model and engine size. Thank you.


100% NEW REPLACEMENT
Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Lexus Toyota and more.
    Lexus
  • LX450 L6 4.5L 1996-1997

    Toyota
  • Paseo L4 1.5L 1993-1999
  • Tercel L4 1.5L 1993-1998
  • 4Runner L4 2.4L 1993-1995
  • 4Runner L4 2.7L 1996-1999
  • Land Cruiser L6 4.5L 1993-1997
  • Pickup L4 2.4L 1993-1995
  • T100 L4 2.7L 1994-1998
  • Tacoma L4 2.4L 1995-1999
  • Tacoma L4 2.7L 1995-1999



Interchange #
Regulator
IN437, IN437HD

Brush Holder Assy
39-8200

Brushes
38-8201

Bearing, Ball
10-3022-4, 10-3022-4E, 10-3022-4W

Slip Ring, Rotor
28-82853

Lester
13409, 13486, 13486, 13487, 13489, 13497, 13512, 13536, 13536, 13673, 13673, 21337, 23053, 23273


Replaces
Denso 126000-1730, 126000-1750, 126000-1930, 126000-2250, Toyota 27700-11070, 27700-11080, 27700-66040, 27700-75020



USED ON
Lexus (1996-1997) ** Toyota (1993-1999) **


UNIT NUMBERS
Denso 101211-0200, 101211-0201, 101211-0340, 101211-0350, 101211-0430, 101211-0431, 101211-0432, 101211-0520, 101211-0521, 101211-0522, 101211-0530, 101211-0531, 101211-0590, 101211-0740, 101211-0970, 101211-0971, 101211-0972, 101211-4120, 101211-4121, 101211-4122, 101211-5150, 101211-5160, 101211-5270, 101211-5780, 101211-7000, 102211-5001, 102211-5002; Lexus 27060-66070, 27060-66070-84; Toyota 27060-11270, 27060-11270-84, 27060-11280, 27060-11280-84, 27060-11290, 27060-11300, 27060-11300-84, 27060-11320, 27060-11330, 27060-11330-84, 27060-11330-84, 27060-11340, 27060-11340-84, 27060-35160, 27060-66040, 27060-66070, 27060-66070-84, 27060-67030, 27060-67070, 27060-67110, 27060-72340, 27060-75040, 27060-75040-84, 27060-75100, 27060-75110, 27060-75150, 27060-75150-84, 27060-75150-84, 27060-75170
