Specifications and Features:
- TYPE Regulator
- ACTIVATION Stator
- CIRCUIT A-CIRCUIT
- GROUND N
- LENGTH MOUNTING MTG LENGTH
- LRC Y
- PLUG CODE 379
- PLUG TYPE 379
- SOFT START Y
- SYSTEM VOLTAGE 12
- VOLT SET 10.7 to 16.0
- MFR:BOSCH
- FEATURE 1:100% New Transpo
- FEATURE 2:BSS (COM) Regulator
- FEATURE 3:COM ID Code: 12
- FEATURE 4:A-Circuit, Voltage Set Range from 10.7V to 16.0V Controlled by BSS Signal
- FEATURE 5:COM-BSS Regulator
- FEATURE 6:Field Short Circuit Protection
- FEATURE 7:LRC and Soft Start
- FEATURE 8:Stator Activated
- NOTE 1:Companion rectifier IBR216 and IBR201
- SPECS FOR:Bosch IR/IF Alternators
- SPECS:12 Volt, A-Circuit, BSS-FR Terminals
- TYPE Bearing
- ID 17
- IND REF NUM 6003
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 10
- TYPE Slip Ring
- ID 7
- LENGTH RING 1 7.9
- LENGTH RING 2 7.9
- LENGTH RINGS 17.7
- OD SLIP RING 15.4
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

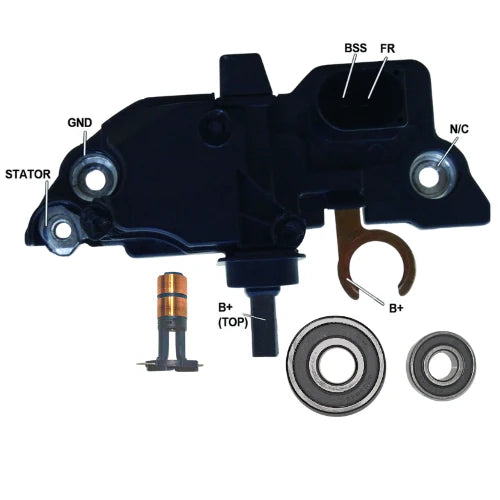

Regulator/Brushes/Bearings/Slip Ring
For Mercedes-Benz and more.
Mercedes-Benz
- C230 L4 1.8L 2003-2005
Interchange #
Regulator
IB293
Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W
Slip Ring, Rotor
28-91852
Lester
13954, 23248, 23285, 23285, 23964
Replaces
Bosch F 00M 144 147, F 00M 145 272, F 00M 145 293, F 00M 145 367, F 00M 145 385, Mercedes-Benz 003-154-37-06, 003-154-58-06
USED ON
Mercedes-Benz (2003-2005)
UNIT NUMBERS
Bosch 0 124 515 088, 0 124 515 198, 0 124 615 022, 0 124 615 028, 0 124 625 017, 0 124 625 022; Marelli 063536150280; Mercedes-Benz 012-154-06-02, 013-154-21-02, 271 154 09 02, 271-154-02-02, 271-154-06-02, 271-154-08-02, 271-154-08-02, 271-154-10-02, 628-154-01-02, A 271 154 09 02, A013-154-21-02, A2711540202, A2711540802, A2711540802, A2711541002, A6281540102
