DESCRIPTION
Specifications and Features:
- TYPE Regulator
- FEATURE 1:COM ID Code: 56
- FEATURE 2:B-Circuit, Default Volt Set 14.40 Volts
- FEATURE 3:Computer Controlled LIN Regulator
- FEATURE 4:LIN-NA Terminals
- FEATURE 5:LIN or Stator Activated
- FEATURE 6:Soft-Start and LRC.
- FEATURE 7:Field Short Circuit Protection
- NOTE 1: Companion Rectifier Positive Assy. IBR24006
- NOTE 2: Companion Rectifier full Assy. IBR4006
- SPECS FOR: Bosch 180A IR/IF Alternators
- SPECS:12 Volt, B-Circuit, LIN-NA Terminals, 14.4 Vset
- TYPE Bearing
- ID 17
- IND REF NUM 6003
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 10
- TYPE Slip Ring
- ID 7
- LENGTH RING 1 7.9
- LENGTH RING 2 7.9
- LENGTH RINGS 17.7
- OD SLIP RING 15.4
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

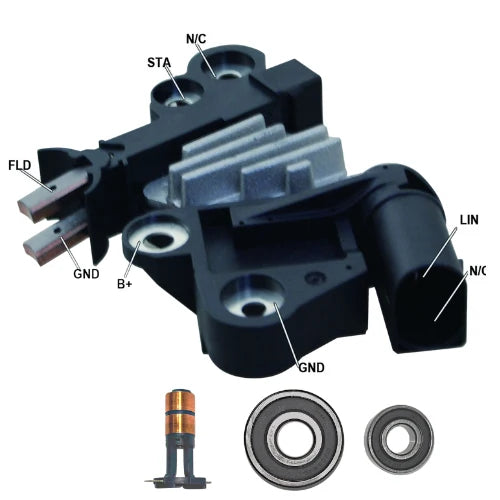

Regulator/Brushes/Bearings/Slip Ring
For Mercedes-Benz and more.
Mercedes-Benz
- C280 V6 3.0L 2008-2009
- C63 AMG V8 6.3L 2008-2015
- CL500 V8 5.5L 2008
- CL500 V8 5.5L 2010
- CL550 V8 5.5L 2007-2010
- CLK550 V8 5.5L 2007-2009
- CLK63 AMG V8 6.3L 2007-2009
- CLS550 V8 5.5L 2007-2011
- CLS63 AMG V8 6.3L 2007-2011
- E280 V6 3.0L 2007
- E300 V6 3.0L 2008-2009
- E320 V6 3.0L 2007-2009
- E350 V6 3.5L 2006-2011
- E550 V8 5.5L 2007-2011
- E63 AMG V8 6.3L 2007-2011
- R350 V6 3.5L 2007-2010
- R63 AMG V8 6.3L 2007
- S450 V8 4.7L 2009
- S550 V8 5.5L 2007-2011
- SL550 V8 5.5L 2007-2009
- SL550 V8 5.5L 2011-2012
- SL63 AMG V8 6.3L 2011-2012
- SL63 AMG V8 6.3L 2009
- SL65 AMG V12 6.0L 2014-2018
- SLK350 V6 3.5L 2010
- G550 V8 5.5L 2009-2015
- G65 AMG V12 6.0L 2016-2018
- GL450 V8 4.7L 2008-2009
- GL500 V8 5.5L 2008
- GL550 V8 5.5L 2008-2010
- ML350 V6 3.5L 2008-2010
- ML450 V6 3.5L 2010
- ML500 V8 4.7L 2013
- ML500 V8 5.5L 2009-2010
- ML550 V8 5.5L 2008-2010
- ML63 AMG V8 6.3L 2007-2011
Interchange #
Regulator
IB6037
Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W
Slip Ring, Rotor
28-91852
Lester
11220, 11220, 11303, 11307, 11307, 20036, 20036
Replaces
Bosch F 00M 346 008, F 00M 346 021, F 00M 346 037, F 00M 346 047, F 00M 346 080
USED ON
Mercedes-Benz (2006-2018)
UNIT NUMBERS
Bosch 0 121 715 006, 0 121 715 007, 0 121 715 011, 0 121 715 014, 0 121 715 015, 0 121 715 029, 0 121 715 107, 0 121 715 114, 0 121 715 115, 0 121 715 129; Marelli 063537151140; Mercedes-Benz 000-906-05-06, 013 154 35 02, 013-154-35-02, 013-154-56-02, 013-154-64-02, 013-154-70-02, 013-154-90-02, 156-154-01-02, 272-154-08-02, A 013 154 35 02, A-000-906-05-06, A-013-154-56-02, A013-154-64-02, A013-154-70-02, A013-154-90-02, A0131543502, A13-154-70-02, A1561540102, A2721540802; Steyr 013-154-70-02
