DESCRIPTION
Specifications and Features:
- TYPE Regulator
- ACTIVATION STATOR ACTIVATED
- CIRCUIT A-CIRCUIT
- ID BRUSH RING 24
- SYSTEM VOLTAGE 12
- TERMINALS S, L
- VOLT SET 14.3
- MFR:MITSUBISHI
- DIM 1:24mm ID Slip Ring Cover
- FEATURE 1:100% New Transpo
- FEATURE 2:Stator activated
- SPECS FOR:Mitsubishi IR/IF Alternators
- SPECS:12 Volt, A-Circuit, S-L Terminals, 14.3 Vset
- TYPE Bearing
- ID 8
- IND REF NUM SC8A05LHI
- OD 23
- OUTER RACE FEATURE 2-TEFLON RINGS
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 14
- TYPE Slip Ring
- ID 12.6
- LENGTH RING 1 7.5
- LENGTH RING 2 7.5
- LENGTH RINGS 17
- OD SLIP RING 22.6
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

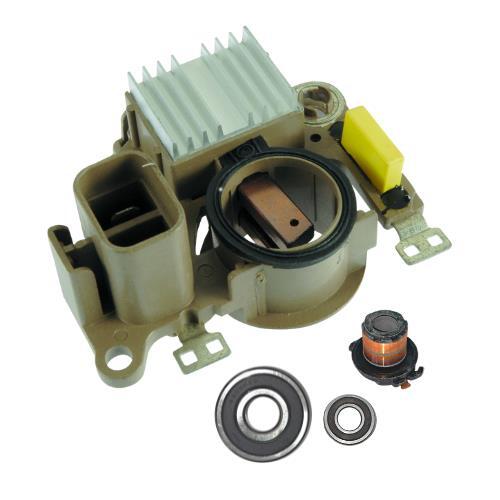

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Mercury Mitsubishi Nissan and more.
Mercury
- Villager V6 3.0L 1993-1995
- Villager V6 3.3L 1999-2002
Mitsubishi
- Montero Sport V6 3.0L 1998-2003
- Montero Sport V6 3.5L 1999-2004
Nissan
- Quest V6 3.0L 1993-1995
- Quest V6 3.3L 1999-2002
Interchange #
Regulator
IM369
Brush Holder Assy
Brushes
Bearing, Ball
10-800-4, 10-800-4E, 10-800-4W
Slip Ring, Rotor
28-83852
Lester
12430, 13473, 13692, 13821
Replaces
Mitsubishi 369, Mitsubishi Motors MD619538, MD619822
IMR10058;TRI350;TRI369
USED ON
Mitsubishi (1998-2004) ** Nissan (1993-2002)
UNIT NUMBERS
Ford F3XA-10300-AB, F3XA-10300-AC, F3XY-10346-A, XF52-10300-AC, XF5Z-10346-AA, XF5Z-10346-AARM; Ford Engineering F3XA-AB, F3XA-AC, XF52-AC; Kubota 3M760-64010, 3M760-64011; Mitsubishi A003TA0791, A003TA0791A, A003TA5691, A003TA5691ZC, A004T01192, A004T01192ZC, A004T02591, A004T02591ZC, A005TA7899, A005TA7899ZC; Mitsubishi Motors MD350608; Nissan, Infiniti 23100-0B000, 23100-7B000, 2310M-0B000RW, 2310M-7B000RW
