For New Alternator kit 6 Pontiac Suzuki Regulator Brush Holder Bearing Slip Ring

For New Alternator kit 6 Pontiac Suzuki Regulator Brush Holder Bearing Slip Ring

$27.95 USD
$0.00 USD $27.95 USD
Sale Sold out
View full details

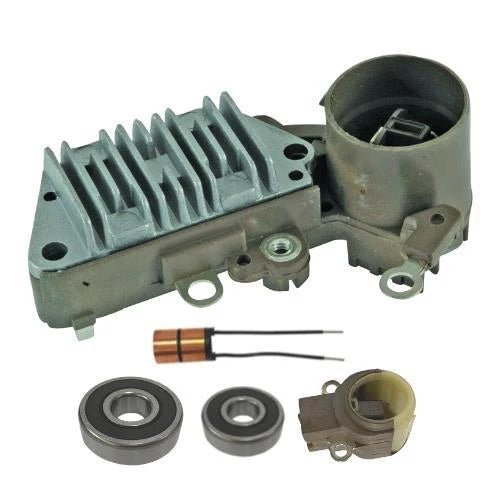

Alternator Regulator, Brush Holder, Brushes, Bearing & Slip Ring

Specifications and Features

Regulator

  • Type: Regulator

  • Circuit: A-Circuit

  • Plug Code: 282

  • System Voltage: 12 Volt

  • Terminals: D, IG, L

  • Voltage Set: 14.5 V

  • Manufacturer: Denso

  • Dimension: 63.5 mm Mounting Length

  • Feature 1: 100% New Transpo

  • Note 1: Standard lamp function — no output.

  • Note 2: Not interchangeable with IN221-1 with active lamp function.

  • Specifications For: Denso IR/IF Alternators

  • Specifications: 12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset

Brush Holder

  • Type: Brush Holder

  • Distance Between Mounting Holes: 26.1

  • Height: 25.93

  • Overall Length: 22.66

  • Mounting Hole Size: 4.3

  • Voltage: 12 Volt

Brushes

  • Type: Brushes

  • Contact Surface: Concave

  • Insulated Lead: No

  • Lead Attachment Location: Side

  • Length: 15

  • Lead Length: 48

  • Termination Type: None

  • Thickness: 4.8

  • Voltage: 12 Volt

  • Width: 7

Bearing

  • Type: Bearing

  • ID: 15

  • Industry Reference Number: 6002

  • OD: 32

  • Side 1 Feature: Rubber Seal

  • Side 2 Feature: Rubber Seal

  • Width: 9

Slip Ring

  • Type: Slip Ring

  • ID: 8.85

  • Length Ring 1: 9.55

  • Length Ring 2: 9.7

  • Length Rings: 20.7

  • OD Slip Ring: 14.5

Compatible Vehicles

Please check the year, make, model, and engine size before purchasing.

100% New Replacement

Regulator / Brush Holder / Brushes / Bearings / Slip Ring

For Pontiac, Suzuki, and more.

Pontiac

  • Firefly L3 1.0L — 1987–1988

  • Firefly L3 1.0L — 1987–1988

Suzuki

  • Forsa L3 1.0L — 1987–1988

  • Forsa L3 1.0L — 1987–1988

  • Samurai L4 1.3L — 1985–1986

  • SJ413 L4 1.3L — 1985

Interchange Numbers

Regulator

IN219

Brush Holder Assembly

39-8200

Brushes

38-8201

Bearing, Ball

6-102-4, 6-102-4E, 6-102-4N, 6-102-4W

Slip Ring, Rotor

28-82853

Lester

11156, 11156, 11183, 11237, 11250, 11250, 11367, 11647, 11787

Replaces

  • Denso: 126000-0410, 126000-0411, 126000-0470

  • GM: 96052000

  • Honda: 31500-PEO-003

  • Suzuki: 32500-82610

Used On

  • Pontiac: 1987–1988

  • Suzuki: 1985–1988

Unit Numbers

Daihatsu Motor Co

27060-87108, 27060-87109

Denso

100211-1410, 100211-1411, 100211-2230, 100211-2290, 100211-2291, 100211-3380, 100211-3640, 100211-4270, 100211-9720, 101211-5280

GM

96055601

Isuzu

1759954012, 8944139970, 8944410681, 8944610911

Suzuki

31400-82611





Compatible Vehicles
Year Make Model Trim Engine
1988 Pontiac Firefly Base Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated
1988 Pontiac Firefly Base Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged
1988 Pontiac Firefly Base Hatchback 4-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated
1988 Pontiac Firefly Base Hatchback 4-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged
1988 Pontiac Firefly Base Sedan 4-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated
1988 Pontiac Firefly Base Sedan 4-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged
1988 Suzuki Forsa Base Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS Naturally Aspirated
1988 Suzuki Forsa Base Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS Turbocharged
1988 Suzuki Forsa V Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS Naturally Aspirated
1987 Pontiac Firefly Base Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated
1987 Pontiac Firefly Base Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged
1987 Pontiac Firefly Base Hatchback 4-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated
1987 Pontiac Firefly Base Hatchback 4-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged
1987 Pontiac Firefly Base Sedan 4-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Naturally Aspirated
1987 Pontiac Firefly Base Sedan 4-Door 1.0L 993CC 61Cu. In. l3 GAS SOHC Turbocharged
1987 Suzuki Forsa Base Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS Naturally Aspirated
1987 Suzuki Forsa Base Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS Turbocharged
1987 Suzuki Forsa V Hatchback 2-Door 1.0L 993CC 61Cu. In. l3 GAS Naturally Aspirated
1986 Suzuki Samurai JA Sport Utility 2-Door 1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated
1986 Suzuki Samurai JX SE Sport Utility 2-Door 1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated
1986 Suzuki Samurai JX Sport Utility 2-Door 1.3L 1325CC 81Cu. In. l4 GAS SOHC Naturally Aspirated
1985 Suzuki Samurai Base Sport Utility 2-Door 1.3L 1325CC 81Cu. In. l4 GAS Naturally Aspirated
1985 Suzuki SJ413 Base Sport Utility 2-Door 1.3L 1298CC 79Cu. In. l4 GAS Naturally Aspirated
