DESCRIPTION
Specifications and Features:
- TYPE Regulator
- ACTIVATION STATOR ACTIVATED
- CIRCUIT B-CIRCUIT
- LAMP ACTIVE LAMP - WITH OUTPUT
- LRC W/ LRC
- SYSTEM VOLTAGE 12
- TERMINALS L
- VOLT SET 14.6
- MFR:BOSCH
- FEATURE 1:100% New Transpo
- FEATURE 2:Soft start, LRC
- FEATURE 3:Stator activated
- NOTE 1:Active lamp circuit - with output
- SPECS FOR:Bosch IR/IF Alternators
- SPECS:12 Volt, B-Circuit, L Terminal, 14.6 Vset, w/ LRC
- TYPE Bearing
- ID 17
- IND REF NUM 6003
- OD 35
- SIDE-1 FEATURE RUBBER SEAL
- SIDE-2 FEATURE RUBBER SEAL
- WIDTH 10
- TYPE Slip Ring
- ID 7
- LENGTH RING 1 7.9
- LENGTH RING 2 7.9
- LENGTH RINGS 17.7
- OD SLIP RING 15.4
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

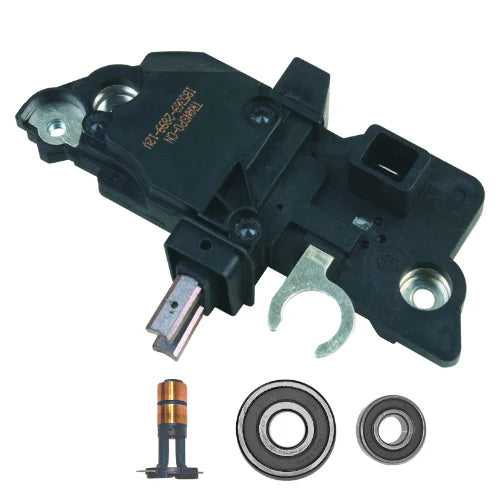

Regulator/Brushes/Bearings/Slip Ring
For Volvo and more.
Volvo
- S40 L4 1.9L 2003-2004
- S60 L5 2.3L 2001-2004
- S60 L5 2.4L 2001-2006
- S60 L5 2.5L 2003-2006
- S80 L5 2.5L 2004-2006
- S80 L6 2.8L 1999-2001
- S80 L6 2.9L 1999-2005
- V40 L4 1.9L 2003-2004
- V70 L5 2.4L 2001-2006
- V70 L5 2.5L 2003-2006
- XC70 L5 2.5L 2003-2004
- XC90 L5 2.5L 2003-2006
- XC90 L6 2.9L 2003-2005
Interchange #
Regulator
IB5369
Bearing, Ball
6-103-4, 6-103-4N, 6-103-4W
Slip Ring, Rotor
28-91852
Lester
11081, 11082, 13801, 13802, 13997, 13998, 13998
Replaces
Bosch F 00M 145 279, F 00M 145 369, F 00M A45 211, Volvo 8637851
USED ON
Volvo (1999-2006)
UNIT NUMBERS
Bosch 0 124 515 017, 0 124 515 054, 0 124 525 001, 0 124 525 014, 0 124 525 029, 0 124 525 529, 0 124 625 001, 0 124 625 003, 1 986 A00 895; Original Reference Number 209052, SA801; Volvo 36050262, 36050264, 3803645, 8111001, 8111001-0, 8111001-7, 8251071, 8251071-0, 8602275, 8602275-0, 8602276, 8602276-0, 8602276-1, 8602277, 8602277, 8602343, 8602343-0, 8602629, 8602710, 8602710-0, 8602710-9, 8602712, 8602712-0, 8602712-5, 8602713, 8602713-0, 8602713-3, 8602714, 8602714-0, 8602714-1, 8622186, 8622786, 8637847, 8637848, 8637849, 8651665, 8676489, 8676496, 8676498, 8676499, 9442841, 9442841-0, 9442841-4, 9459092, 9459092-0, 9459092-4, 9489312
