DESCRIPTION
Specifications and Features:

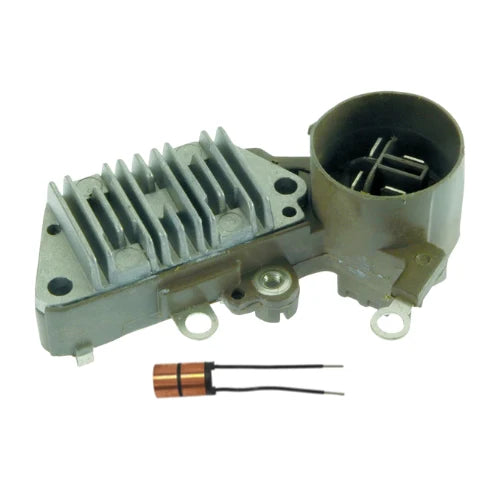

- TYPE Regulator
- CIRCUIT A-CIRCUIT
- PLUG CODE 290
- SYSTEM VOLTAGE 12
- TERMINALS S, FR, IG, L
- VOLT SET 14.4
- MFR: DENSO
- DIM 1:63.5mm Mtg. Length
- FEATURE 1:100% New Transpo
- NOTE 1:Active lamp function - with output.
- SPECS FOR: Denso IR/IF Alternators
- SPECS:12 Volt, A-Circuit, S-FR-IG-L Terminals, 14.4 Vset
- TYPE Slip Ring
- ID 8.85
- LENGTH RING 1 9.55
- LENGTH RING 2 9.7
- LENGTH RINGS 20.7
- OD SLIP RING 14.5
Compatible Vehicles:
*Please check the year, make, model, and engine size. Thank you.
100% NEW REPLACEMENT
Regulator/Slip Ring
For Acura, Honda, and more.
Acura
- Legend V6 3.2L 1991-1995
- NSX V6 3.0L 1991
Honda
- Accord L4 1.8L 1984-1985
- Accord L4 2.0L 1986-1989
- Prelude L4 2.0L 1985-1987
Interchange #
Regulator
IN226
Slip Ring, Rotor
28-82851, RCP-44763
Lester
13386, 13387, 14680
Replaces
Denso 126000-0540, 126000-1170, Honda 31150-PD6-004, 31150-PD6-014, 31150-PD6-024, 31150-PH3-013, 31150-PR7-A01
USED ON
Acura (1991-1995) ** Honda (1984-1989)
UNIT NUMBERS
Acura 31100-PR7-A01, 31100-PY3-003, 31100-PY3-003RM, 31100-PY3-013, CLB18; Denso 100211-2010, 100211-2011, 100211-2140, 100211-6150, 100211-6170, 9760211-617; Honda 31100-PD6-004, 31100-PD6-004RM, 31100-PD6-014, 31100-PJ0-661, 31100-PJ0-661RM, 31100-PJ0-662, 31100-PJ0-663, 31100-PJ0-663RM, 31100-PY3-003, 31100-PY3-003RM, 31100-PY3-013, CJK22, CJK35, CLB18; Marelli 943346008010, 943355175010
