DESCRIPTION
Specifications and Features:

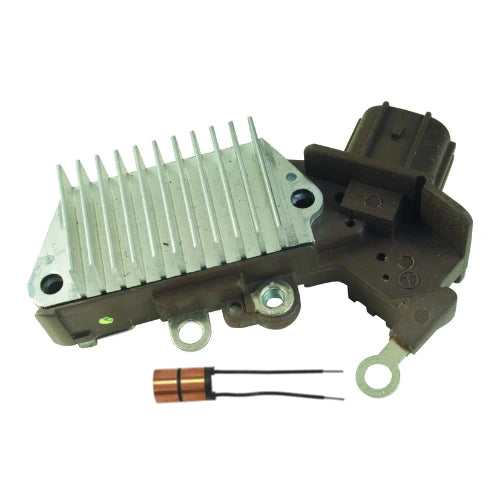

- TYPE Regulator
- ACTIVATION IGNITION ACTIVATED
- CIRCUIT B-CIRCUIT
- LENGTH MOUNTING MTG LENGTH
- LRC W/ LRC
- PLUG CODE 295
- PLUG TYPE 295
- SYSTEM VOLTAGE 12
- VOLT SET 14.1
- MFR:DENSO
- DIM 1:63.5mm Mtg. Length
- FEATURE 1:100% New Transpo
- FEATURE 2:Ignition activated
- FEATURE 3:Soft start, LRC
- FEATURE 4:Short-circuit protection: lamp, field
- NOTE 1:This regulator will work correctly in Toyota Yaris with daylight running lights.
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, B-Circuit, IG-S-L-FR Terminals, 14.1 Vset, w/ LRC
- TYPE Slip Ring
- ID 8.85
- LENGTH RING 1 9.55
- LENGTH RING 2 9.7
- LENGTH RINGS 20.7
- OD SLIP RING 14.5
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT
Regulator/Slip Ring
For Toyota and more.
Toyota
- Yaris L4 1.5L 2006-2015
- Tacoma L4 2.7L 2005-2016
Interchange #
Regulator
IN3054, IN3052, VRH2005-100A
Slip Ring, Rotor
28-82853
Lester
11194, 11203, 11354, 11354, 11505
Replaces
Denso 126600-0520, 126600-0540, GS2M 0520, GS2M 0540, Toyota 27700-21050, 27700-75030
USED ON
Toyota (2005-2016) **
UNIT NUMBERS
Denso 104210-8110, 104210-8180, 104210-8230, 104210-8232, 104210-840, 104210-8400, 104210-8401, 104210-8590, 104210-8591; Toyota 27060-21150, 27060-21151, 27060-21151, 27060-75310, 27060-75310-84, 27060-75410, 27060-75411, 27060-75411-84, 27060-75412, 27060-75490, 27060-75490
