DESCRIPTION
Specifications and Features:
- TYPE Regulator
- ACTIVATION STATOR
- CIRCUIT B-CIRCUIT
- SYSTEM VOLTAGE 12
- TERMINALS LIN
- MFR:DENSO
- FEATURE 1:100% New Transpo
- FEATURE 2:LIN (COM) Regulator
- FEATURE 3:COM ID Code: 9
- FEATURE 4:Stator Activated
- FEATURE 5:Field Rating 5 Amps
- FEATURE 6:Voltage Set point and Regulation Mode is controlled by Vehicle
- SPECS FOR:Denso IR/IF Alternators
- SPECS:12 Volt, B-Circuit, 14.0 Vset, High Side Drive Regulator, LIN Terminals
- TYPE Slip Ring
- ID 5.8
- LENGTH LEADS 11
- LENGTH OA 46.5
- LENGTH RING 1 8.2
- LENGTH RING 2 8.2
- OD SLIP RING 14.3
Compatible Vehicles:
*Please check the year, make, model and engine size. Thank you.
100% NEW REPLACEMENT

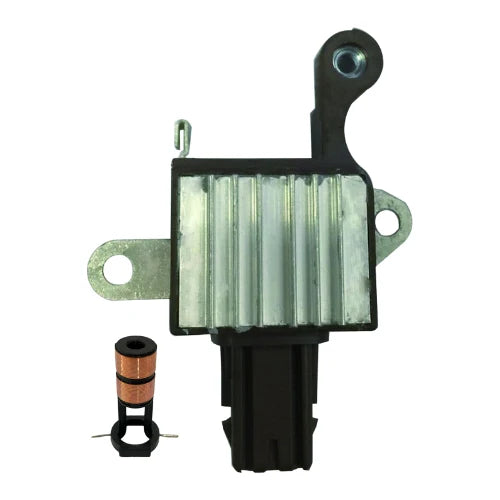

Regulator/Slip Ring
Toyota
- Corolla L4 1.8L 2014-2019
- RAV4 L4 2.5L 2013-2018
Interchange #
Regulator
IN6373
Slip Ring, Rotor
28-82854
Lester
11777, 14487, 20525, 20947
Replaces
Denso 126600-4360, 4360, GC9 4360
USED ON
Toyota (2013-2019) **
UNIT NUMBERS
Denso 104211-3000, 104211-3001, 104211-3002, 104211-3020, 104211-3021, 104211-3022, 104211-3130, 104211-3290, 104211-3291, 104211-3293, 104211-3310, 104211-3311, 104211-3312, 104211-3313, 104211-3531, DAN1094; Toyota 27060-0N090, 27060-0N100, 27060-0T260, 27060-0V140, 27060-0Y130, 27060-36090
