Specifications and Features:
TYPE Terminal Block
CIRCUIT B-CIRCUIT
SYSTEM VOLTAGE 12
TERMINALS IG, C, L, FR
MFR:DEN.
FEATURE 1:100% New Transpo
FEATURE 2:Volt Set 14.35V
FEATURE 3:Ignition Activated
FEATURE 4:OE Compliant C-Function
FEATURE 5:Standard Lamp Function - Without Output
FEATURE 6:Field and Lamp short circuit protection
SPECS FOR:Den. IR/IF Alternators
SPECS:12 Volt, B-Circuit, IG-C-L-FR Terminals
TYPE Brush Holder Assy
DIST MTG HOLES 25.5
HEIGHT 29.5
VOLT 12
TYPE Brushes
CONTACT SURFACE CONCAVE
INSULATED LEAD NO
LEAD ATTACH LOCATION SIDE
LENGTH 15
LENGTH LEAD 48
TERMINATION TYPE NONE
THICK 4.8
VOLT 12
WIDTH 7
TYPE Bearing
ID 15
IND REF NUM 279
OD 35
SIDE-1 FEATURE RUBBER SEAL
SIDE-2 FEATURE RUBBER SEAL
WIDTH 13
TYPE Slip Ring
ID 5.8
LENGTH LEADS 11
LENGTH OA 46.5
LENGTH RING 1 8.2
LENGTH RING 2 8.2
OD SLIP RING 14.3
Compatible Vehicles:
*Please check the year, make, model, and engine size. Thank you.
100% NEW REPLACEMENT

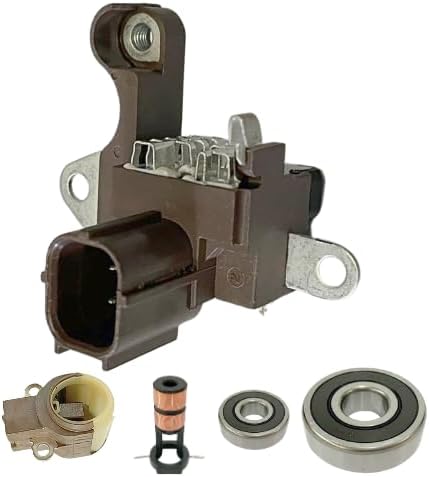

Regulator/Brush Holder/Brushes/Bearings/Slip Ring
For Acu. Hon. and more.
Acu.
RL V6 3.7L 2009-2012
TL V6 3.5L 2009-2014
TL V6 3.7L 2009-2014
TSX V6 3.5L 2010-2014
MDX V6 3.7L 2010-2013
ZDX V6 3.7L 2010-2013
Hon.
Accord V6 3.5L 2008-2012
Accord Crosstour V6 3.5L 2010
Pilot V6 3.5L 2009-2015
Ridgeline V6 3.5L 2009-2014
Odyssey V6 3.5L 2008-2017
Interchange #
Regulator
IN6365
Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W
USED ON
Acu. (2009-2014) ** Hon. (2008-2017)
UNIT NUMBERS
Acu. 31100-RGW-A01, 31100-RGW-A01RM, 31100-RV0-A11, 31100-RV0-A11RM, CSF92; Den. 104210-1240, 104210-1600, 104210-5910, 104210-5920, 104211-8520, TN104210-1600, TN104211-8520; Hon. 06311-RV0-505RM, 31100-R70-A01, 31100-R70-A01RM, 31100-R70-A11, 31100-R70-A11RM, 31100-RGW-A01, 31100-RGW-A01RM, 31100-RV0-A01, 31100-RV0-A01RM, 31100-RV0-A11, 31100-RV0-A11RM, 31100-RV0-A12, 31100-RV0-A12RM, CSF91, CSF92, CSJ24, CSJ60, CSK52; Original Reference Number TN104210-5910
- 100% NEW REPLACEMENT Regulator/Brush Holder/Brushes/Bearings/Slip Ring For Acu. Hon. and more.
- TYPE Terminal Block CIRCUIT B-CIRCUIT SYSTEM VOLTAGE 12 TERMINALS IG, C, L, FR MFR:DEN. FEATURE 1:100% New Transpo FEATURE 2:Volt Set 14.35V FEATURE 3:Ignition Activated FEATURE 4:OE Compliant C-Function FEATURE 5:Standard Lamp Function - Without Output FEATURE 6:Field and Lamp short circuit protection SPECS FOR:Den. IR/IF Alternators SPECS:12 Volt, B-Circuit, IG-C-L-FR Terminals
- TYPE Brush Holder Assy DIST MTG HOLES 25.5 HEIGHT 29.5 VOLT 12
- TYPE Brushes CONTACT SURFACE CONCAVE INSULATED LEAD NO LEAD ATTACH LOCATION SIDE LENGTH 15 LENGTH LEAD 48 TERMINATION TYPE NONE THICK 4.8 VOLT 12 WIDTH 7
- TYPE Bearing ID 15 IND REF NUM 279 OD 35 SIDE-1 FEATURE RUBBER SEAL SIDE-2 FEATURE RUBBER SEAL WIDTH 13
- TYPE Slip Ring ID 5.8 LENGTH LEADS 11 LENGTH OA 46.5 LENGTH RING 1 8.2 LENGTH RING 2 8.2 OD SLIP RING 14.3
- Compatible Vehicles: Acu. RL V6 3.7L 2009-2012 TL V6 3.5L 2009-2014 TL V6 3.7L 2009-2014 TSX V6 3.5L 2010-2014 MDX V6 3.7L 2010-2013 ZDX V6 3.7L 2010-2013 Hon. Accord V6 3.5L 2008-2012 Accord Crosstour V6 3.5L 2010 Pilot V6 3.5L 2009-2015 Ridgeline V6 3.5L 2009-2014 Odyssey V6 3.5L 2008-2017
