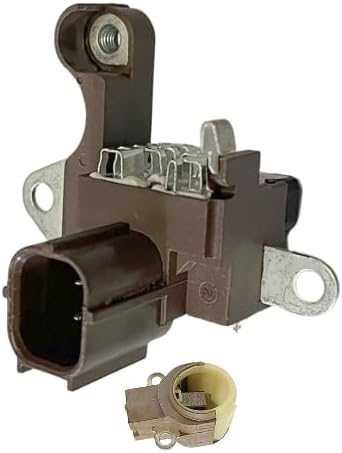

New Alternator Kit Regulator Brush Holder in6365rk2 Replacement For Acu. RL, TL, TSX, MDX, ZDX 2010 2011 2012 (3.7L, 3.5L)

Specifications and Features:

TYPE Regulator
CIRCUIT B-CIRCUIT
SYSTEM VOLTAGE 12
TERMINALS IG, C, L, FR
MFR:DEN.
FEATURE 1:100% New Transpo
FEATURE 2:Volt Set 14.35V
FEATURE 3:Ignition Activated
FEATURE 4:OE Compliant C-Function
FEATURE 5:Standard Lamp Function - Without Output
FEATURE 6:Field and Lamp short circuit protection
SPECS FOR:Den. IR/IF Alternators
SPECS:12 Volt, B-Circuit, IG-C-L-FR Terminals

TYPE Brush Holder Assy
DIST MTG HOLES 25.5
HEIGHT 29.5
VOLT 12

TYPE Brushes
CONTACT SURFACE CONCAVE
INSULATED LEAD NO
LEAD ATTACH LOCATION SIDE
LENGTH 15
LENGTH LEAD 48
TERMINATION TYPE NONE
THICK 4.8
VOLT 12
WIDTH 7

Compatible Vehicles:
*Please check the year, make, model, and engine size. Thank you.

100% NEW REPLACEMENT
Regulator/Brush Holder/Brushes
For Acu. Hon. and more.

Acu.
RL V6 3.7L 2009-2012
TL V6 3.5L 2009-2014
TL V6 3.7L 2009-2014
TSX V6 3.5L 2010-2014
MDX V6 3.7L 2010-2013
ZDX V6 3.7L 2010-2013

Hon.
Accord V6 3.5L 2008-2012
Accord Crosstour V6 3.5L 2010
Pilot V6 3.5L 2009-2015
Ridgeline V6 3.5L 2009-2014
Odyssey V6 3.5L 2008-2017

Interchange #
Regulator
IN6365

Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W

USED ON
Acu. (2009-2014) ** Hon. (2008-2017)

UNIT NUMBERS
Acu. 31100-RGW-A01, 31100-RGW-A01RM, 31100-RV0-A11, 31100-RV0-A11RM, CSF92; Den. 104210-1240, 104210-1600, 104210-5910, 104210-5920, 104211-8520, TN104210-1600, TN104211-8520; Hon. 06311-RV0-505RM, 31100-R70-A01, 31100-R70-A01RM, 31100-R70-A11, 31100-R70-A11RM, 31100-RGW-A01, 31100-RGW-A01RM, 31100-RV0-A01, 31100-RV0-A01RM, 31100-RV0-A11, 31100-RV0-A11RM, 31100-RV0-A12, 31100-RV0-A12RM, CSF91, CSF92, CSJ24, CSJ60, CSK52; Original Reference Number TN104210-5910
